SN54LVC157A

PinoutSpecificationsSupply voltage range, VCC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .−0.5 V to 6.5 VInput voltage range, VI(see Note 1). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −0.5 V to 6.5 VOutput voltage range, VO(see No...

product image

SN54LVC157A Picture
See larger image
SeekIC No. : 004497123 Detail

SN54LVC157A: PinoutSpecificationsSupply voltage range, VCC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .−0.5 V to 6.5 VInput voltage range, VI(see Note 1). . . . . . . . . ...

SN54LVC157A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN54LVC157A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

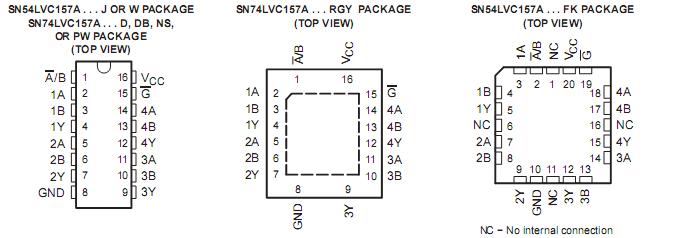

Connection Diagram


Specifications

Supply voltage range, VCC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  −0.5 V to 6.5 V
Input voltage range, VI (see Note 1). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −0.5 V to 6.5 V
Output voltage range, VO (see Notes 1 and 2). . . . . . . . . . . . . . . . . . . . −0.5 V to VCC + 0.5 V
Input clamp current, IIK (VI < 0). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  −50 mA
Output clamp current, IOK (VO < 0). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ... −50 mA
Continuous output current, IO. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .±50 mA
Continuous current through VCC or GND. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±100 mA
Package thermal impedance, JA(see Note 3):D package. . . . . . . . . . . . . . . . . . . . . ... 73°C/W
                                                   (see Note 3):DB package. . . . . . . . . . . . . . . . . . . . . .  82°C/W
                                                   (see Note 3):NS package. . . . . . . . . . . . . . . . . . . . . .  64°C/W
                                                   (see Note 3):PW package . . . . . . . . . . . . . . . . . . . . .108°C/W
                                                   (see Note 4):RGY package. . . . . . . . . . . . . . . . . . . . . . 39°C/W
Storage temperature range, Tstg. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −65°C to 150°C
Power dissipation, Ptot(TA= −40°C to 125°C) (see Notes 5 and 6) . . . . . . . . . . . . . . ..500 mW



Description

These quadruple 2-line to 1-line data LVC157A selectors/multiplexers are designed for 1.65-V to 3.6-V VCC operation.

The 'LVC157A devices feature a common strobe (G</a>) input. When G</a> is high, all outputs are low. When G</a> is low,a 4-bit word is selected from one of two sources and is routed to the four outputs. The devices provide true data.
