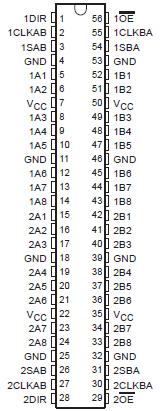

Connection Diagram


Specifications

Supply voltage range, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . 0.5 V to 4.6 V
Input voltage range, VI (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . 0.5 V to 7 V
Current into any output in the low state, IO: SN54LVTH16374 .. . . . . . . . . . .. . . . . . . . . . 96 mA
                                                                       SN74LVTH16374 . . . . . . . . . . . . . . . . . . . . 128 mA
Current into any output in the high state, IO (see Note 2): SN54LVTH16374  . . . . . . . . . . 48 mA
                                                                                             SN74LVTH16374  . . . . . . . . . . 64 mA
Input clamp current, IIK (VI < 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 mA
Output clamp current, IOK (VO < 0) . . . . . . . . . . . . . . .  . . . . . . . . . . . . . . . . . . . . . . . . . . 50 mA
Package thermal impedance, qJA (see Note 3): DGG package  . . . . . . . .. . . . . . . . . . . . . 89°C/W
                                                                           DL package . . .  . . . . . . . . . . . . . . . . . . . 94°C/W
                                                                           GQL/ZQL package  . . . . . . . . . . . . . . . . . 42°C/W
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . .. . . . .. . . . . . . . . . 65°C to 150°C
† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
NOTES: 1. The input and output negative-voltage ratings may be exceeded if the input and output clamp-current ratings are observed.
             2. This current flows only when the output is in the high state and VO > VCC.
             3. The package thermal impedance is calculated in accordance with JESD 51.


Description

The 'LVT16646 devices are 16-bit bus transceivers and registers designed for low-voltage (3.3-V) VCC operation, but with the capability to provide a TTL interface to a 5-V system environment.

LVT16646 can be used as two 8-bit transceivers or one 16-bit transceiver. Data on the A or B bus is locked into the registers on the low-to-high transition of the appropriate clock (CLKAB or CLKBA) input. Figure 1 illustrates the four fundamental bus-management functions that can be performed with the LVT16646 devices.
