Product Details

Description



Pinout

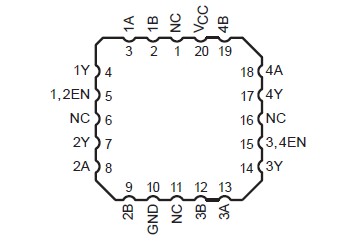

  Connection Diagram
  Connection Diagram


Specifications

Supply voltage range, VCC (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to 7 V
Input voltage, A or B inputs, VI . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . ±25 V
Differential input voltage, VID (see Note 2) . . . . . . . . . . . . . . . . . . . . . .  . . . . . . ±25 V
Data and control voltage range . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . 0.3 V to 7 V
Continuous total dissipation . . . . . . . . . . . . . . . . . . .  . . . See Dissipation Rating Table
Operating free-air temperature range, TA . . . . . . . . . . . . . . . . . . . . . . . 55 to 125
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . 65 to 150
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds . . . . . . . . . . . . . 260

1. All voltage values are with respect to GND.
2. Differential input voltage is measured at the noninverting input with respect to the corresponding inverting input.



Description

The SN55LBC175 is a monolithic quadruple differential line receiver with 3-state outputs and is designed to meet the requirements of the EIA Standards RS-422-A, RS-423-A, RS-485, and CCITT V.11. SN55LBC175 is optimized for balanced multipoint bus transmission at data rates up to and exceeding 10 million bits per second. The receivers are enabled in pairs with an active-high enable input. Each differential receiver input features high impedance, hysteresis for increased noise immunity, and sensitivity of ±200 mV over a common-mode input voltage range of 12 V to 7 V. Fail-safe design ensures that if the inputs are open-circuited, the outputs are always high. SN55LBC175 is designed using the Texas Instruments proprietary LinBiCMOSE technology allowing low power consumption, high switching speeds, and robustness.

This device offers optimum performance when used with the SN55LBC174 quadruple line driver. The SN55LBC175 is available in the 16-pin CDIP (J) package, a 16-pin CPAK (W) package, or a 20-pin LCCC (FK) package.

The SN55LBC175 is characterized over the military temperature range of 55°C to 125°C.
