Product Details

Description



Pinout

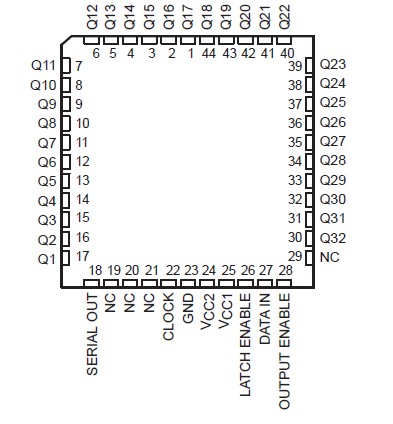

Connection Diagram




Specifications

Supply voltage, VCC1 (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 V
Supply voltage, VCC2 (see Note 2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90 V
Input voltage, VI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . VCC1 + 0.3 V
Ground current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . 700 mA
Continuous total power dissipation . . . . . . . . . . . . . . . . . . .. . See Dissipation Rating Table
Operating free-air temperature range, TA: SN65555, SN65556 . . . . . . . .   . 40  to 85
                                                                   SN75555, SN75556 . . . . . . . . . . . . . 0  to 70
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . 65  to 150
Case temperature for 10 seconds: FN package . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . 260
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: N package . . . . . . . 260

1. Voltage values are with respect to network GND.
2. These devices have been designed to be used in applications in which the high-voltage supply, VCC2, is switched to GND before
changing the state of the outputs.


Description

The SN65555, SN75555, SN65556, and SN75556 are monolithic BIDFET† integrated circuits designed to drive the column electrodes of an electroluminescent display. The SN65556 and SN75556 output sequence is reversed from the SN65555 and SN75555 for ease in printed-circuitboard layout.

The SN65555, SN75555, SN65556, and SN75556 consist of a 32-bit shift register, 32 latches, and 32 output AND gates. Serial data is entered into the shift register on the low-to-high transition of CLOCK. When high, LATCH ENABLE transfers the shift register contents to the outputs of the 32 latches. When OUTPUT ENABLE is high, all Q outputs of SN65555, SN75555, SN65556, and SN75556 are enabled. Data must be loaded into the latches and OUTPUT ENABLE must be high before supply voltage VCC2 is ramped up.

Serial data output from the shift register can be used to cascade shift registers. This output of SN65555, SN75555, SN65556, and SN75556 is not affected by LATCH ENABLE or OUTPUT ENABLE.

The SN65555 and SN65556 are characterized for operation from 40  to 85 . The SN75555 and SN75556 are characterized for operation from 0  to 70 .
