SN65LV1224B

` 100-Mbps to 660-Mbps Serial LVDS Data
  Payload Bandwidth at 10-MHz to 66-MHz System Clock
` Pin-Compatible Superset of DS92LV1023/DS92LV1224
` Chipset (Serializer/Deserializer) Power Consumption <450 mW (Typ) at 66 MHz
` Synchronization Mode for Faster Lock
` Lock Indicator
` No External Components Required for PLL
` 28-Pin SSOP and Space Saving 5 ´ 5 mm QFN Packages Available
` Industrial Temperature Qualified, T_A = 40°C to 85°C
` Programmable Edge Trigger on Clock
` Flow-Through Pinout for Easy PCB Layout

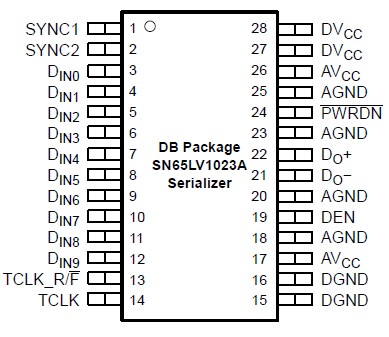

The SN65LV1023A serializer and SN65LV1224B deserializer comprise a 10-bit serdes chipset designed to transmit and receive serial data over LVDS differential backplanes at equivalent parallel word rates from 10 MHz to 66 MHz. Including overhead, SN65LV1224B translates into a serial data rate between 120-Mbps and 792-Mbps payload encoded throughput.

Upon power up, the chipset link can be initialized via a synchronization mode with internally generated SYNC patterns or the deserializer SN65LV1224B can be allowed to synchronize to random data. By using the synchronization mode, the deserializer SN65LV1224B establishes lock within specified, shorter time parameters.

The SN65LV1224B can be entered into a power-down state when no data transfer is required. Alternatively, a mode is available to place the output pins in the high-impedance state without losing PLL lock.

The SN65LV1023A and SN65LV1224B are characterized for operation over ambient air temperature of 40°C to 85°C.
