SN65LVDS3

Features:

  Meet or Exceed the Requirements of ANSI TIA/EIA-644 Standard
 Low-Voltage Differential Signaling With Typical Output Voltage of 350 mV and 100- Load
 Typical Output Voltage Rise and Fall Times of 500 ps (400 Mbps)
 Typical Propagation Delay Times of 1.7 ns
 Operate From a Single 3.3-V Supply
 Power Dissipation 25 mW Typical Per Driver at 200 MHz
 Driver at High Impedance When Disabled or With VCC = 0
 Bus-Terminal ESD Protection Exceeds 8 kV
 Low-Voltage TTL (LVTTL) Logic Input Levels
 Pin Compatible With AM26LS31, MC3487,and A9638


Application

Audio                                www.ti.com/audio
Automotive                       www.ti.com/automotive
Broadband                        www.ti.com/broadband
Digital Control                   www.ti.com/digitalcontrol
Military                              www.ti.com/military
Optical Networking           www.ti.com/opticalnetwork
Security                            www.ti.com/security
Telephony                        www.ti.com/telephony
Video & Imaging               www.ti.com/video
Wireless                           www.ti.com/wireless

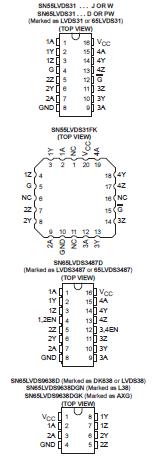

Pinout




Specifications

Supply voltage range, V_CC (see Note 1)  . . . . . . . . . . . . . . . . . −0.5 V to 4 V
Input voltage range, V_I .. . . . . . . . . . . . . . . . . . . . . . . −0.5 V to V_CC + 0.5 V
Continuous total power dissipation . . . . . . . . . See Dissipation Rating Table
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds. . . . 260°C
Storage temperature range, T_stg  .. . . . . . . . . . . . . . . . . . −65°C to 150°C
† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
NOTE 1: All voltages, except differential I/O bus voltages, are with respect to the network ground terminal.


Description

The SN55LVDS31, SN65LVDS31,SN65LVDS3487, and SN65LVDS9638 aredifferential line drivers that implement the electrical characteristics of low-voltage differential signaling (LVDS). This signaling technique lowers the output voltage levels of 5-V differential standard levels (such as TIA/EIA-422B) to reduce the power, increase the switching speeds, and allow operation with a 3.3-V supply rail. Any of the four current-mode drivers delivers a minimum differential output voltage of SN55LVDS31, SN65LVDS31,SN65LVDS3487, and SN65LVDS9638 magnitude of 247 mV into a 100- load when enabled.

The intended application of SN55LVDS31, SN65LVDS31,SN65LVDS3487, and SN65LVDS9638 and signaling technique is both point-to-point and multidrop (one driver and multiple receivers) data transmission over controlled impedance media of approximately 100 . The transmission media may be printed-circuit board traces, backplanes,or cables. The ultimate rate and distance of data transfer SN55LVDS31, SN65LVDS31,SN65LVDS3487, and SN65LVDS9638 is dependent upon the attenuation characteristics of the media and the noise coupling to the environment.
