SN65LVDS348

Features: `Meets or Exceeds the Requirements of ANSI TIA/EIA-644A Standard`Single-Channel Signaling Rates1 up to 560 Mbps`4 V to 5 V Common-Mode Input Voltage Range`Flow-Through Architecture`Active Failsafe Assures a High-level Output When an Input Signal Is not Present`SN65LVDS348 Provides a Wide...

product image

SN65LVDS348 Picture
See larger image
SeekIC No. : 004497490 Detail

SN65LVDS348: Features: `Meets or Exceeds the Requirements of ANSI TIA/EIA-644A Standard`Single-Channel Signaling Rates1 up to 560 Mbps`4 V to 5 V Common-Mode Input Voltage Range`Flow-Through Architecture`Active ...

SN65LVDS348 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN65LVDS348
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Meets or Exceeds the Requirements of ANSI TIA/EIA-644A Standard
` Single-Channel Signaling Rates1 up to 560 Mbps
` 4 V to 5 V Common-Mode Input Voltage Range
` Flow-Through Architecture
` Active Failsafe Assures a High-level Output When an Input Signal Is not Present
` SN65LVDS348 Provides a Wide Common-Mode Range Replacement for the SN65LVDS048A or the DS90LV048A


Application

· Logic Level Translator
· Point-to-Point Baseband Data Transmission Over 100-Ω Media
· ECL/PECL-to-LVTTL Conversion
· Wireless Base Stations
· Central Office or PABX Switches


Pinout

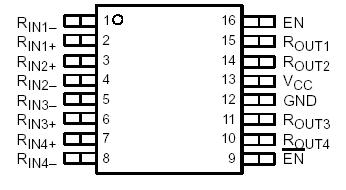

Connection Diagram


Specifications

Supply voltage range (see Note 1), VCC, VCCA, VCCD1, and VCCD2 . . . . . . . . .. . . ...............0.5 V to 4 V
Voltage range: Enables, ROUT, or Y . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. ...........0.5 V to 6 V
                        Differential input magnitude VID (LVDT only) . . . . . . . . . . . . . . . . . . . . .. . . . . . . . .1 V
                        RIN+, RIN, A or B . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. .. 5 V to 6 V
Electrostatic discharge: Human body model (see Note 2): A, B, RIN+, RIN and GND . . . . . ...... . .±15 kV
                                                                                           All pins . . . . . . . . . . . . . . . . . . . . . . .. . .±7 kV
                            Charged-device model (see Note 3): All pins . . . . . . . . . . . . . . . . . . . . . . .. . . .±500 V
Continuous power dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..See Dissipation Rating Table
Storage temperature range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ... . . . . . . . .65°C to 150°C


Description

The SN65LVDS348, SN65LVDT348, SN65LVDS352,and SN65LVDT352 are high-speed, quadruple differential receivers with a wide common-mode input voltage range. This allows receipt of TIA/EIA-644 signals with up to 3-V of ground noise or a variety of differential and single-ended logic levels. The '348 is in a 16-pin package to match the industry-standard footprint of the DS90LV048. The '352 adds two additional VCC and GND pins in a 24-pin package to provide higher data transfer rates with multiple receivers in operation. SN65LVDS348, SN65LVDT348, SN65LVDS352,and SN65LVDT352 offer a flow-through architecture with all inputs on one side and outputs on the other to ease board layout and reduce crosstalk between receivers. LVDT versions of both integrate a 110-Ω line termination resistor.
