SN65LVDS86AQ

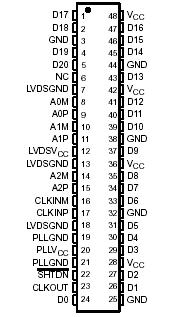

The SN65LVDS86AQ/SN75LVDS86A FlatLink receiver contains three serial-in 7-bit parallel-out shift registers and four low-voltage differential signaling (LVDS) line receivers in a single integrated circuit. These functions of SN65LVDS86AQ/SN75LVDS86A allow receipt of synchronous data from a compatible transmitter, such as the SN75LVDS81, '83, '84, or '85, over four balanced-pair conductors and expansion to 21 bits of single-ended low-voltage LVTTL synchronous data at a lower transfer rate.

When receiving, the high-speed LVDS data is received and loaded into registers at seven times the LVDS input clock (CLKIN) rate. The data of SN65LVDS86AQ/SN75LVDS86A is then unloaded to a 21-bit wide LVTTL parallel bus at the CLKIN rate. The 'LVDS86A presents valid data on the falling edge of the output clock (CLKOUT).

The 'LVDS86A requires only four line-termination resistors for the differential inputs of SN65LVDS86AQ/SN75LVDS86A and little or no control. The data bus appears the same at the input to the transmitter and output of the receiver with the data transmission transparent to the user(s). The only user intervention is the possible use of the shutdown/clear (SHTDN) active-low input to inhibit the clock and shut off the LVDS receivers SN65LVDS86AQ/SN75LVDS86A for lower power consumption. A low level on this signal clears all internal registers to a low level.

The SN75LVDS86A is characterized for operation over ambient free-air temperatures of 0°Cto 70°C. The SN65LVDS86AQ is characterized for operation over the full Automotive temperature range of 40°C to 125°C.
