SN74ABT16241

Features: • Member of the Texas Instruments WidebusTM Family• State-of-the-Art EPIC-II BTM BiCMOS Design Significantly Reduces Power Dissipation• Typical VOLP (Output Ground Bounce) < 1 V at VCC = 5 V, TA = 25°C• Distributed VCC and GND Pin Configuration Minimizes High-S...

product image

SN74ABT16241 Picture
See larger image
SeekIC No. : 004497698 Detail

SN74ABT16241: Features: • Member of the Texas Instruments WidebusTM Family• State-of-the-Art EPIC-II BTM BiCMOS Design Significantly Reduces Power Dissipation• Typical VOLP (Output Ground Bounce...

SN74ABT16241 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN74ABT16241
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Member of the Texas Instruments WidebusTM Family
• State-of-the-Art EPIC-II BTM BiCMOS Design Significantly Reduces Power Dissipation
• Typical VOLP (Output Ground Bounce) < 1 V at VCC = 5 V, TA = 25°C
• Distributed VCC and GND Pin Configuration Minimizes High-Speed Switching Noise
• Flow-Through Architecture Optimizes PCB Layout
• High-Drive Outputs (32-mA IOH, 64-mA IOL)
• Packaged in Plastic 300-mil Shrink Small-Outline (SSOP) Packages


Pinout

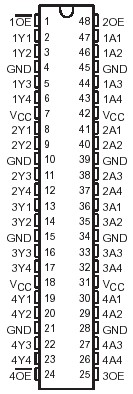

Connection Diagram


Description

The SN74ABT16241 is a 16-bit buffer and line driver designed specifically to improve both the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters. The device can be used as four 4-bit buffers, two 8-bit buffers, or one 16-bit buffer. This device provides true outputs and complementary output-enable (OE and OE) inputs.

To ensure the high-impedance state of SN74ABT16241during power up or power down, OE should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver. OE should be tied to GND through a pulldown resistor; the minimum value of the resistor is determined by the current-sourcing capability of the driver.

The SN74ABT16241 is available in TI's shrink small-outline package (DL), which provides twice the I/O pin count and functionality of standard small-outline packages in the same printed-circuit-board area.

The SN74ABT16241 is characterized for operation from 40°C to 85°C.
