SN74ABT16241A

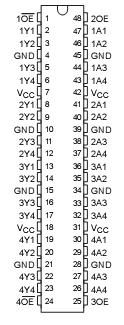

Pinout




Specifications

Supply voltage range, V_CC  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..0.5 V to 7 V
Input voltage range, V_I (except I/O ports) (see Note 1)  . . . .  . . . . . . . 0.5 V to 7 V
Voltage range applied to any output in the high or power-off state, V_O . . . .  . . . . . .
                                                                       . . . .  . . . . . . .. . . .  . . .  0.5 V to 5.5 V

Current into any output in the low state, I_O : SN54ABT16241A. . .  . ..  .  .  .  .   96mA
                                                                        SN74ABT16241A  . . .  .  .  .   .  . 128mA
Input clamp current, I_IK  (V_I < 0)  . . . . . . . . . . . . . . . . . . . . . . . . .  .  . . . . . . . 18mA
Output clamp current, I_OK  (V_O < 0)  . . . . . . . . . . . . . . . . . . . . . . . . . .. . .  . . .50mA
Package thermal impedance, JA (see Note 2): DGG package . .  . . . . . . . . . . 89/W
                                                                           DGV package . .  . .  . . . . . . . 93/W
                                                                           DL package . . . . . . .. . . . . . . 94/W
Storage temperature range, T_stg   . . . . . . . . .. . .  . . . . . . . . . . . . . . .. 65 to150


Description

The 'ABT16241A devices are 16-bit buffers and line drivers designed specifically to improve both the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters.

These 'ABT16241A  devices can be used as four 4-bit buffers, two 8-bit buffers, or one 16-bit buffer. These devices provide true outputs and complementary output-enable (OE and OE ) inputs.
