SN74ABT162823A

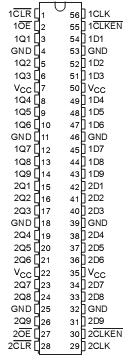

Pinout




Specifications

Supply voltage range, V_CC  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..0.5 V to 7 V
Input voltage range, V_I (except I/O ports) (see Note 1)  . . . .  . . . . . . . 0.5 V to 7 V
Voltage range applied to any output in the high or power-off state, V_O . . . .  . . . . . .
                                                                       . . . .  . . . . . . .. . . .  . . .  0.5 V to 5.5 V
Current into any output in the low state, I_O : . . . . .  . .. . . . . . .  .. . . . . . .  . . . . 30mA
Input clamp current, I_IK  (V_I < 0)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18mA
Output clamp current, I_OK  (V_O < 0)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50mA
Package thermal impedance, q JA (see Note 2): DL package  . . . . . . . . . . . . 74°C/W
Storage temperature range, T_stg. . . . . . . . .. . .  . . . . . . . . . . . . . . . . .. 65to150


Description

These  'ABT162823A 18-bit bus-interface flip-flops feature 3-state outputs designed specifically for driving highly capacitive or relatively low-impedance loads. They are particularly suitable for implementing wider buffer registers, I/O ports,bidirectional bus drivers with parity, and working registers.

The 'ABT162823A can be used as two 9-bit flip-flops or one 18-bit flip-flop. With the clock-enable (CLKEN) input low, the D-type flip-flops enter data on the low-to-high transitions of the clock. Taking CLKEN high disables the clock buffer, thus latching the outputs. Taking the clear (CLR) input low causes the Q outputs to go low independently of the clock.
