SN74ABT16541

Features: • Members of the Texas Instruments WidebusTM Family• State-of-the-Art EPIC-II BTM BiCMOS Design Significantly Reduces Power Dissipation• Latch-Up Performance Exceeds 500 mA Per JEDEC Standard JESD-17• Typical VOLP (Output Ground Bounce) < 0.8 V at VCC = 5 V, TA...

product image

SN74ABT16541 Picture
See larger image
SeekIC No. : 004497722 Detail

SN74ABT16541: Features: • Members of the Texas Instruments WidebusTM Family• State-of-the-Art EPIC-II BTM BiCMOS Design Significantly Reduces Power Dissipation• Latch-Up Performance Exceeds 500 ...

SN74ABT16541 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN74ABT16541
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Members of the Texas Instruments WidebusTM Family
• State-of-the-Art EPIC-II BTM BiCMOS Design Significantly Reduces Power Dissipation
• Latch-Up Performance Exceeds 500 mA Per JEDEC Standard JESD-17
• Typical VOLP (Output Ground Bounce) < 0.8 V at VCC = 5 V, TA = 25°C
• Distributed VCC and GND Pin Configuration Minimizes High-Speed Switching Noise
• Flow-Through Architecture Optimizes PCB Layout
• High-Drive Outputs (32-mA IOH, 64-mA IOL)
• Package Options Include Plastic 300-mil Shrink Small-Outline (DL) and Thin Shrink Small-Outline (DGG) Packages and 380-mil Fine-Pitch Ceramic Flat (WD) Package Using 25-mil Center-to-Center Spacings




Pinout

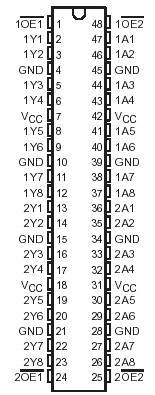

Connection Diagram


Specifications

Supply voltage range, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . 0.5 V to 7 V
Input voltage range,  (see Note 1) . . . . . . . . . . . . . .  . . . . . . . . . . . . .. . .. . . . . . . . . . .0.5 V to 7 V
Voltage applied to any output in the high state or power-off state, VO  . . .  . . . . .  . .0.5 V to 5.5 V
Current into any output in the low state, IO: SN54ABT16541. . . . . . . . . .. . . . . . . . . .  .. . .. . .96 mA
                                                                       SN74ABT16541 . . . . . . . . . . . . . . . . . . . . . ..   .128 mA
Input clamp current, IIK (VI < 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . .. . . .. .18 mA
Output clamp current, IOK (VO < 0)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50 mA
Maximum power dissipation at TA = 55°C (in still air) (see Note 2): DGG package   . . . . . .  . . 0.85 W
                                                                                                         DL package  . . . .. . . . .   .. .1.2 W
Storage temperature range. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .    . . .. . . .65°C to 150°C


Description

The 4ABT16541 are noninverting 16-bit buffers composed of two 8-bit sections with separate output-enable signals. For either 8-bit buffer section, the two output-enable (1OE1 and 1OE2 or 2OE1 and 2OE2) inputs must both be low for the corresponding Y outputs to be active. If either output-enable input is high, the outputs of that 8-bit buffer section are in the high-impedance state.

To ensure the high-impedance state of 4ABT16541 during power up or power down, OE should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.

In the 4ABT16541 series, the SN74ABT16541 is available in TI's shrink small-outline package (DL), which provides twice the I/O pin count and functionality of standard small-outline packages in the same printed-circuit-board area.The SN54ABT16541 is characterized for operation over the full military temperature range of 55°C to 125°C. The SN74ABT16541 is characterized for operation from 40°C to 85°C.
