SN74ABT16825

Features: ` Members of the Texas Instruments WidebusE Family` State-of-the-Art EPIC-II BE BiCMOS Design Significantly Reduces Power Dissipation` Latch-Up Performance Exceeds 500 mA Per JEDEC Standard JESD-17` Typical VOLP (Output Ground Bounce) < 1 V at VCC = 5 V, TA = 25°C` High-Impedance Stat...

product image

SN74ABT16825 Picture
See larger image
SeekIC No. : 004497733 Detail

SN74ABT16825: Features: ` Members of the Texas Instruments WidebusE Family` State-of-the-Art EPIC-II BE BiCMOS Design Significantly Reduces Power Dissipation` Latch-Up Performance Exceeds 500 mA Per JEDEC Standar...

SN74ABT16825 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN74ABT16825
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Members of the Texas Instruments WidebusE Family
` State-of-the-Art EPIC-II BE BiCMOS Design Significantly Reduces Power Dissipation
` Latch-Up Performance Exceeds 500 mA Per JEDEC Standard JESD-17
` Typical VOLP (Output Ground Bounce) < 1 V at VCC = 5 V, TA = 25°C
` High-Impedance State During Power Up and Power Down
` Distributed VCC and GND Pin Configuration Minimizes High-Speed Switching Noise
` Flow-Through Architecture Optimizes PCB Layout
` High-Drive Outputs (32-mA IOH, 64-mA IOL)
` Package Options Include Plastic 300-mil Shrink Small-Outline (DL) and Thin Shrink Small-Outline (DGG) Packages and 380-mil Fine-Pitch Ceramic Flat (WD) Package Using 25-mil Center-to-Center Spacings


Pinout

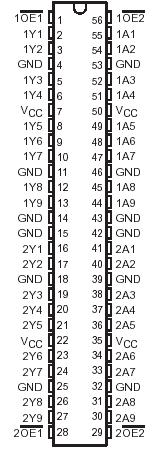

Connection Diagram


Specifications

Supply voltage range, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to 7 V
Input voltage range, VI (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to 7 V
Voltage range applied to any output in the high or power-off state, VO . . .. . 0.5 V to 5.5 V
Current into any output in the low state, IO:SN54ABT16825 . . . . . . . .. . .. . .. . .. . . . . .96 mA
                                                                       SN74ABT16825 . . . . . . .. . .. . .. .. . . . . . .128 mA
Input clamp current, IIK (VI < 0) . . . . . . . . . . . . . . . . . .. . .. . . . . . . . . . . . . . . . . . . . . .18 mA
Output clamp current, IOK (VO < 0) . . . . . . . . . . . . . . . . .. . ... . . . . . . . . . . . . . . . . . . .50 mA
Package thermal impedance, qJA (see Note 2): DGG package . . . . .. . .. . .. . .. . . . . . .81°C/W
                                                                           DL package . . . . . . . .. . .. . .. . . . . . . .74°C/W
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65°C to 150°C


Description

The 'ABT16825 are 18-bit buffers and line drivers designed specifically to improve both the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters. These devices can be used as two 9-bit buffers or one 18-bit buffer. They provide true data.

The 'ABT16825 3-state control gate is a 2-input AND gate with active-low inputs so that if either output-enable (OE1 or OE2) input is high, all nine affected outputs are in the high-impedance state.

When VCC of 'ABT16825 is between 0 and 2.1 V, the device is in the high-impedance state during power up or power down. However, to ensure the high-impedance state above 2.1 V, OE should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.The SN54ABT16825 is characterized for operation over the full military temperature range of 55°C to 125°C. The SN74ABT16825 is characterized for operation from 40°C to 85°C.
