SN74ABT16841

Features: ` Members of the Texas Instruments WidebusE Family` State-of-the-Art EPIC-II BE BiCMOS Design Significantly Reduces Power Dissipation` ESD Protection Exceeds 2000 V Per MIL-STD-883, Method 3015; Exceeds 200 V Using Machine Model (C = 200 pF, R = 0)` Latch-Up Performance Exceeds 500 mA Pe...

product image

SN74ABT16841 Picture
See larger image
SeekIC No. : 004497736 Detail

SN74ABT16841: Features: ` Members of the Texas Instruments WidebusE Family` State-of-the-Art EPIC-II BE BiCMOS Design Significantly Reduces Power Dissipation` ESD Protection Exceeds 2000 V Per MIL-STD-883, Method...

SN74ABT16841 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN74ABT16841
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Members of the Texas Instruments WidebusE Family
` State-of-the-Art EPIC-II BE BiCMOS Design Significantly Reduces Power Dissipation
` ESD Protection Exceeds 2000 V Per MIL-STD-883, Method 3015; Exceeds 200 V Using Machine Model (C = 200 pF, R = 0)
` Latch-Up Performance Exceeds 500 mA Per JEDEC Standard JESD-17
` Typical VOLP (Output Ground Bounce) < 0.8 V at VCC = 5 V, TA = 25°C
` High-Impedance State During Power Up and Power Down
` Distributed VCC and GND Pin Configuration Minimizes High-Speed Switching Noise
` Flow-Through Architecture Optimizes PCB Layout
` High-Drive Outputs (32-mA IOH, 64-mA IOL)
` Package Options Include Plastic 300-mil Shrink Small-Outline (DL) Package and 380-mil Fine-Pitch Ceramic Flat (WD) Package Using 25-mil Center-to-Center Spacings


Pinout

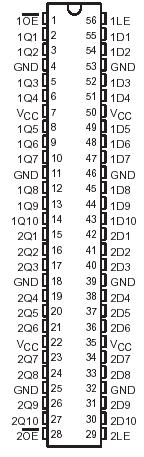

Connection Diagram


Specifications

Supply voltage range, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to 7 V
Input voltage range, VI (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to 7 V
Voltage range applied to any output in the high or power-off state, VO . . . ... .0.5 V to 5.5 V
Current into any output in the low state, IO:SN54ABT16841 . . . . . . . . .. .. .. .. .. .. . . . . .96 mA
                                                                       SN74ABT16841 . . . . . . .. .. .. .. . .. . . . . . .128 mA
Input clamp current, IIK (VI < 0) . . . . . . . . . . . . . . . .. . . . . . . . . . . .. . . .. . . . . . . . . . . .18 mA
Output clamp current, IOK (VO < 0) . . . . . . . . . . . . . . . . . . . . . . . . . . .. .. ... . . . . . . . . .50 mA
Package thermal impedance, JA (see Note 2): DL package . . . . . . . .. .. .. .. .. ..  . . . . .74°C/W
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . .65°C to 150°C


Description

These 'ABT16841 20-bit latches feature 3-state outputs designed specifically for driving highly capacitive or relatively low-impedance loads. They are particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers.

The 'ABT16841 can be used as two 10-bit latches or one 20-bit latch. The 20 transparent D-type latches provide true data at the outputs. While the latch-enable (1LE or 2LE) input is high, the Q outputs of the corresponding 10-bit latch follow the D inputs. When LE is taken low, the Q outputs are latched at the levels set up at the D inputs.

A buffered output-enable (1OE or 2OE) input of 'ABT16841 can be used to place the outputs of the corresponding 10-bit latch in either a normal logic state (high or low logic levels) or a high-impedance state. In the high-impedance state, the outputs neither load nor drive the bus lines significantly.

The output-enable input of 'ABT16841 does not affect the internal operation of the latches. Old data can be retained or new data can be entered while the outputs are in the high-impedance state.
