SN74ABT16843

Features: ` Members of the Texas Instruments WidebusE Family` State-of-the-Art EPIC-II BE BiCMOS Design Significantly Reduces Power Dissipation ` Distributed VCC and GND Pin Configuration Minimizes High-Speed Switching Noise` Flow-Through Architecture Optimizes PCB Layout` High-Impedance State Dur...

product image

SN74ABT16843 Picture
See larger image
SeekIC No. : 004497737 Detail

SN74ABT16843: Features: ` Members of the Texas Instruments WidebusE Family` State-of-the-Art EPIC-II BE BiCMOS Design Significantly Reduces Power Dissipation ` Distributed VCC and GND Pin Configuration Minimizes ...

SN74ABT16843 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN74ABT16843
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Members of the Texas Instruments WidebusE Family
` State-of-the-Art EPIC-II BE BiCMOS Design Significantly Reduces Power Dissipation
` Distributed VCC and GND Pin Configuration Minimizes High-Speed Switching Noise
` Flow-Through Architecture Optimizes PCB Layout
` High-Impedance State During Power Up and Power Down
` High-Drive Outputs (32-mA IOH, 64-mA IOL)
` Package Options Include Plastic Thin Shrink Small-Outline (DGG), 300-mil Shrink Small-Outline (DL) Packages and 380-mil Fine-Pitch Ceramic Flat (WD) Package Using 25-mil Center-to-Center Spacings


Application

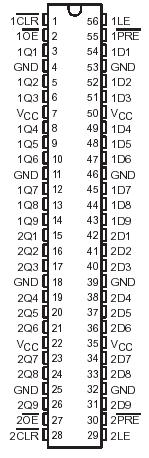

Connection Diagram


Specifications

Supply voltage range, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to 7 V
Input voltage range, VI (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to 7 V
Voltage range applied to any output in the high or power-off state, VO  . . . . . . . . .. . .0.5 V to 5.5 V
Current into any output in the low state, IO:SN54ABT16843 . . . . . . . . . . . . . . . . . . . . . . . . . . . .96 mA
                                                                      SN74ABT16843 . . . . . . . . . . . . . . . . . . . . . . . . . . .128 mA
Input clamp current, IIK (VI < 0)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18 mA
Output clamp current, IOK (VO < 0)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50 mA
Package thermal impedance, JA (see Note 2): DGG package  . . . . . . . . . . . . . . . . . . . . .  . . . .81°C/W
                                                                          DL package  . . . . . . . . . . . . . . . . . . . . . . . .  . . .74°C/W
Storage temperature range, Tstg  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . .65°C to 150°C


Description

The 'ABT16843 18-bit bus-interface D-type latches are designed specifically for driving highly capacitive or relatively low-impedance loads. They are particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers.

The 'ABT16843 can be used as two 9-bit latches or one 18-bit latch. The 18 latches are transparent D-type latches. The device provides true data at its outputs.

A buffered output-enable (OE) input of 'ABT16843 can be used to place the nine outputs in either a normal logic state (high or low logic levels) or a high-impedance state. The outputs are in the high-impedance state during power up and power down. The outputs remain in the high-impedance state while the device is powered down. In the high-impedance state, the outputs neither load nor drive the bus lines significantly. The high-impedance state and increased drive provide the capability to drive bus lines without need for interface or pullup components.
