SN74ABT16853

Features: ` Members of the Texas Instruments WidebusTM Family` State-of-the-Art EPIC-II BE BiCMOS Design Significantly Reduces Power Dissipation` Latch-Up Performance Exceeds 500 mA Per JEDEC Standard JESD-17` Typical VOLP (Output Ground Bounce) < 1 V at VCC = 5 V, TA = 25°C` Distributed VCC an...

product image

SN74ABT16853 Picture
See larger image
SeekIC No. : 004497738 Detail

SN74ABT16853: Features: ` Members of the Texas Instruments WidebusTM Family` State-of-the-Art EPIC-II BE BiCMOS Design Significantly Reduces Power Dissipation` Latch-Up Performance Exceeds 500 mA Per JEDEC Standa...

SN74ABT16853 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN74ABT16853
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Members of the Texas Instruments WidebusTM Family
` State-of-the-Art EPIC-II BE BiCMOS Design Significantly Reduces Power Dissipation
` Latch-Up Performance Exceeds 500 mA Per JEDEC Standard JESD-17
` Typical VOLP (Output Ground Bounce) < 1 V at VCC = 5 V, TA = 25°C
` Distributed VCC and GND Pin Configuration Minimizes High-Speed Switching Noise
` Flow-Through Architecture Optimizes PCB Layout
` High-Drive Outputs (32-mA IOH, 64-mA IOL)
` Parity-Error Flag With Parity Generator/Checker
` Latch for Storage of the Parity-Error Flag ` Package Options Include Plastic 300-mil Shrink Small-Outline (DL) and Thin Shrink Small-Outline (DGG) Packages and 380-mil Fine-Pitch Ceramic Flat (WD) Package Using 25-mil Center-to-Center Spacings


Pinout

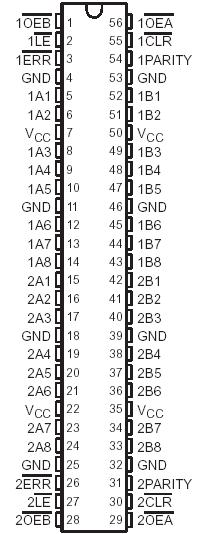

Connection Diagram


Specifications

Supply voltage range, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . .  . . . . . . . . .0.5 V to 7 V
Input voltage range, VI (except I/O ports) (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to 7 V
Voltage range applied to any output in the high or power-off state, VO . . . . . . . . . . . . . . 0.5 V to 5.5 V
Current into any output in the low state, IO:SN54ABT16853  . . . . . . . . . . . . . . . . . . . . . . .  . . . . . .96 mA
SN74ABT16853  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .128 mA
Input clamp current, IIK (VI < 0)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18 mA
Output clamp current, IOK (VO < 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . .  50 mA
Package thermal impedance, JA (see Note 2): DGG package  . . . . . . . . . . . . . . . . . . . . . . .  . . . .81°C/W
                                                                           DL package  . . . . . . . . . . . . . . . . . . . . .  . . . . . . .74°C/W
Storage temperature range, Tstg  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . .65°C to 150°C


Description

The 'ABT16853 dual 8-bit to 9-bit parity transceivers are designed for communication between data buses. When data is transmitted from the A bus to the B bus, a parity bit is generated. When data is transmitted from the B bus to the A bus, with its corresponding parity bit, the open-collector parity-error (ERR) output indicates whether or not an error in the B data has occurred. The output-enable (OEA and OEB) inputs can be used to disable the device so that the buses are effectively isolated. The 'ABT16853 provide true data at the outputs.

A 9-bit parity generator/checker generates a parity-odd (PARITY) output and monitors the parity of the I/O ports with the ERR flag. The parity-error output of 'ABT16853 can be passed, sampled, stored, or cleared from the latch using the latch-enable (LE) and clear (CLR) control inputs. When both OEA and OEB are low, data is transferred from the A bus  to the B bus, and inverted parity is generated. Inverted parity is a forced error condition that gives the designer more system diagnostic capability.

To ensure the high-impedance state of 'ABT16853 during power up or power down, OE should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.
