SN74ABT2952

Features: • State-of-the-Art EPIC-II BTM BiCMOS Design Significantly Reduces Power Dissipation• ESD Protection Exceeds 2000 V Per MIL-STD-883C, Method 3015; Exceeds 200 V Using Machine Model (C = 200 pF, R = 0)• Latch-Up Performance Exceeds 500 mA Per JEDEC Standard JESD-17•...

product image

SN74ABT2952 Picture
See larger image
SeekIC No. : 004497763 Detail

SN74ABT2952: Features: • State-of-the-Art EPIC-II BTM BiCMOS Design Significantly Reduces Power Dissipation• ESD Protection Exceeds 2000 V Per MIL-STD-883C, Method 3015; Exceeds 200 V Using Machine M...

SN74ABT2952 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN74ABT2952
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• State-of-the-Art EPIC-II BTM BiCMOS Design Significantly Reduces Power Dissipation
• ESD Protection Exceeds 2000 V Per MIL-STD-883C, Method 3015; Exceeds 200 V Using Machine Model (C = 200 pF, R = 0)
• Latch-Up Performance Exceeds 500 mA Per JEDEC Standard JESD-17
• Two 8-Bit Back-to-Back Registers Store Data Flowing in Both Directions
• Noninverting Outputs
• Typical VOLP (Output Ground Bounce) < 1 V at VCC = 5 V, TA = 25°C
• Package Options Include Plastic Small-Outline (SOIC) and Shrink Small-Outline (SSOP) Packages, Ceramic Chip Carriers, and Plastic and Ceramic DIPs




Pinout

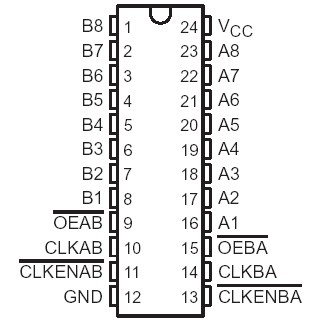

Connection Diagram


Specifications

Supply voltage range, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . 0.5 V to 7 V
Input voltage range,  VI (except I/O ports) (see Note 1).  . . . . . . . . . . . . .. . ..   . . . . . .0.5 V to 7 V
Voltage applied to any output in the high state or power-off state, VO  . . .  . . . . .  . .0.5 V to 5.5 V
Current into any output in the low state, IO: SN54ABT2952 . . . . . . . . . . . . .. . . . . . . . . . . . .. . .96 mA
                                                                       SN74ABT2952 . . . . . . . . . . . . . . . . . . . . . . . ..   .128 mA
Input clamp current, IIK (VI < 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . .. .18 mA
Output clamp current, IOK (VO < 0)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50 mA
Maximum power dissipation at TA = 55°C (in still air):DB package  . . . .  . .  . . . . . . . . . .. . .   . . .0.7W
                                                                                    DW package  . . . . . . . . . . . . . . . . . . . . . . .  1 W
                                                                                    NT package  . . . .. .. . . . . . . . . . . . . . .  .   1.3 W
Storage temperature range. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .    . . .. . . .65°C to 150°C


Description

The SN74ABT2952 consists of two 8-bit back-to-back registers that store data flowing in both directions between two bidirectional buses. Data on the A or B bus is stored in the registers on the low-to-high transition of the clock (CLKAB or CLKBA) input provided that the clock-enable (CLKENAB or CLKENBA) input is low. Taking the output-enable (OEAB or OEBA) input low accesses the data on either port.

To ensure the high-impedance state of SN74ABT2952 during power up or power down, OE should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.

The SN74ABT2952 is available in TI's shrink small-outline package (DB), which provides the same I/O pin count and functionality of standard small-outline packages in less than half the printed-circuit-board area.

The SN54ABT2952 is characterized for operation over the full military temperature range of 55°C to 125°C. The SN74ABT2952 is characterized for operation from 40°C to 85°C.
