SN74ABT32245

Features: • Members of the Texas Instruments Widebus+TM Family• State-of-the-Art EPIC-II BTM BiCMOS Design Significantly Reduces Power Dissipation• Latch-Up Performance Exceeds 500 mA Per JEDEC Standard JESD-17• Typical VOLP (Output Ground Bounce) < 0.8 V at VCC = 5 V, T...

product image

SN74ABT32245 Picture
See larger image
SeekIC No. : 004497765 Detail

SN74ABT32245: Features: • Members of the Texas Instruments Widebus+TM Family• State-of-the-Art EPIC-II BTM BiCMOS Design Significantly Reduces Power Dissipation• Latch-Up Performance Exceeds 500...

SN74ABT32245 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN74ABT32245
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Members of the Texas Instruments Widebus+TM Family
• State-of-the-Art EPIC-II BTM BiCMOS Design Significantly Reduces Power Dissipation
• Latch-Up Performance Exceeds 500 mA Per JEDEC Standard JESD-17
• Typical VOLP (Output Ground Bounce) < 0.8 V at VCC = 5 V, TA = 25°C
• Distributed VCC and GND Pin Configuration Minimizes High-Speed Switching Noise
• High-Drive Outputs (32-mA IOH, 64-mA IOL)
• Bus-Hold Inputs Eliminate the Need for External Pullup Resistors
• Packaged in 100-Pin Plastic Thin Quad Flat (PZ) Package With 14 * 14-mm Body Using 0.5-mm Lead Pitch


Pinout

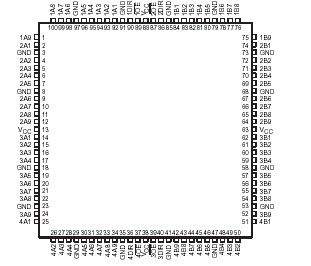

Connection Diagram


Specifications

Supply voltage range, VCC  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to 7 V
Input voltage range, VI (except I/O ports) (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to 7V
Voltage range applied to any output in the high state or power-off state, VO  . . . . . .0.5 V to 5.5 V
Current into any output in the low state, IO: SN54ABT32245  . . . . . . . . . . . . . . . . .  . . . . . . . .96 mA
                                                                       SN74ABT32245  . . . . . . . . . . . . . . . . . . .  . . . . .128 mA
Input clamp current, IIK (VI < 0)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18 mA
Output clamp current, IOK (VO < 0)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   . . . . . . . .50 mA
Maximum power dissipation at TA = 55°C (in still air) (see Note 2)  . . . . . . . . . .. . . . . . . . . . . . .1.2 W
Storage temperature range  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . .65°C to 150°C


Description

The 4ABT32245 are 36-bit (quad 9-bit) noninverting 3-state transceivers designed for synchronous two-way communication between data buses. The control-function implementation minimizes external timing requirements.

These 4ABT32245 devices can be used as four 9-bit transceivers, two18-bit transceivers, or one 36-bit transceiver. They allow data transmission from the A bus to the B bus or from the B bus to the A bus, depending upon the logic level at the direction-control (DIR) inputs. The output-enable (OE) inputs can be used to disable the device so that the buses are effectively isolated.

To ensure the high-impedance state of 4ABT32245 during power up or power down, OE should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.

Active bus-hold circuitry of 4ABT32245 holds unused or floating data inputs at a valid logic level.The SN54ABT32245 is characterized for operation over the full military temperature range of 55°C to 125°C. The SN74ABT32245 is characterized for operation from 40°C to 85°C.
