SN74ABT533

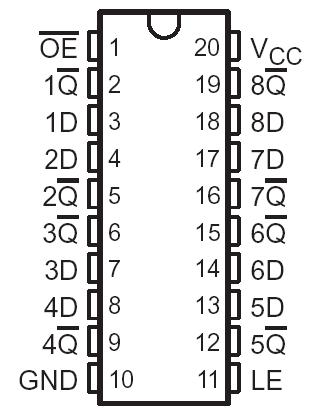

The 4ABT533 are 8-bit transparent D-type latches with 3-state outputs designed specifically for driving highly capacitive or relatively lowimpedance loads. They are particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers.

When the latch-enable (LE) input of 4ABT533  is high, the Q outputs follow the complements of the data (D) inputs. When LE is taken low, the Q outputs are latched at the inverse of the levels set up at the D inputs. The 4ABT533 provides inverted data at its outputs.

A buffered output-enable (OE) input of 4ABT533  can be used to place the eight outputs in either a normal logic state (high or low logic levels) or a high-impedance state. In the high-impedance state, the outputs neither load nor drive the bus lines significantly. The high-impedance state and the increased drive provide the capability to drive bus lines without need for interface or pullup components.

OE does not affect the internal operations of the latches. Previously stored data can be retained or new data can be entered while the outputs are in the high-impedance state. To ensure the high-impedance state of 4ABT533  during power up or power down, OE should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.The SN74ABT533 is available in TI's shrink small-outline package (DB), which provides the same I/O pin count and functionality of standard small-outline packages in less than half the printed-circuit-board area.The SN54ABT533 is characterized for operation over the full military temperature range of 55°C to 125°C. The SN74ABT533 is characterized for operation from 40°C to 85°C.
