Product Details

Description



Pinout

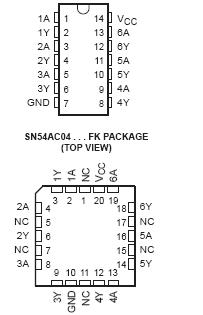

Connection Diagram


Specifications

Supply voltage range, VCC................................................................................................0.5 V to 7 V
Input voltage range, VI (see Note 1) ..................................................................0.5 V to VCC + 0.5 V
Output voltage range, VO (see Note 1)................................................................0.5 V to VCC + 0.5 V
Input clamp current, IIK (VI < 0 or VI > VCC) ............................................................................ ±20 mA
Output clamp current, IOK (VO < 0 or VO > VCC)....................................................................... ±20 mA
Continuous output current, IO (VO = 0 to VCC) ......................................................................... ±50 mA
Continuous current through VCC or GND ..................................................................................±200 mA
Maximum power dissipation at TA = 55°C (in still air) (see Note 2): D package ...........................1.25 W
DB package .....................................................................................................................................0.5 W
N package ............................ ..........................................................................................................1.1 W
PW package ....................................................................................................................................0.5 W
Storage temperature range, Tstg ...............................................................................65°C to 150°C


Description

The 'AC04 contain six independent inverters. The devices perform the Boolean function Y = A.The SN54AC04 is characterized for operation over the full military temperature range of 55°C to 125°C. The SN74AC04 is characterized for operation from 40°C to 85°C.
