SN74AC533

Features:

 2-V to 6-V V_CC Operation
 Inputs Accept Voltages to 6 V
 Max tpd of 10.5 ns at 5 V
 3-State Inverting Outputs Drive Bus Lines Directly
 Full Parallel Access for Loading


Application

Audio                                  www.ti.com/audio
Automotive                         www.ti.com/automotive
Broadband                         www.ti.com/broadband
Digital Control                    www.ti.com/digitalcontrol
Military                               www.ti.com/military
Optical Networking            www.ti.com/opticalnetwork
Security                             www.ti.com/security
Telephony                         www.ti.com/telephony
Video & Imaging               www.ti.com/video
Wireless                           www.ti.com/wireless

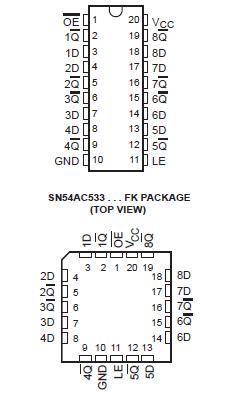

Pinout




Specifications

Supply voltage range, VCC . . . . . . . . . . . . . . . . . . . . . .. . . . −0.5 V to 7 V
Input voltage range, VI (see Note 1) .. . . . . . . . . . −0.5 V to VCC + 0.5 V
Output voltage range, VO (see Note 1) . . . . . . . . −0.5 V to VCC + 0.5 V
Input clamp current, IIK (VI < 0 or VI > VCC) . . . . . . . . . . . . . . . ±20 mA
Output clamp current, IOK (VO < 0 or VO > VCC) . . . . . . . . . . . . ±20 mA
Continuous output current, IO (VO = 0 to VCC) . . . . . . . . . . . . . ±50 mA
Continuous current through VCC or GND . . . . . . . . . . . . . . . . . ±200 mA
Package thermal impedance, JA (see Note 2): DB package. . . 70°C/W
                                                                          DW package . . 58°C/W
                                                                          N package. . . . 69°C/W
                                                                          NS package . . . 60°C/W
                                                                          PW package  . . 83°C/W
Storage temperature range, Tstg   . . . . . . . . . . . . . . . −65°C to 150°C


Description

The 'AC533 devices are octal transparent D-type latches with 3-state outputs. When the latch-enable (LE) input is high, the Q outputs follow the complements of the data (D) inputs.When LE is taken low, the Q outputs are latched
at the inverse logic levels set up at the D inputs.

A buffered output-enable (Q) input of 'AC533 can be used to place the eight outputs in either a normal logic state (high or low logic levels) or the high-impedance state. In the high-impedance state, the outputs neither load nor drive the bus lines significantly. The high-impedance state and increased drive provide the capability to drive bus lines without need for interface or pullup components.
