SN74ACT7807

Features:

· Free-Running Read and Write Clocks Can Be Asynchronous or Coincident
· Read and Write Operations Synchronized to Independent System Clocks
· Input-Ready Flag Synchronized to Write Clock
· Output-Ready Flag Synchronized to Read Clock
· 2048 Words by 9 Bits
· Low-Power Advanced CMOS Technology
· Programmable Almost-Full/Almost-Empty Flag
· Input-Ready, Output-Ready, and Half-Full Flags
· Cascadable in Word Width and/or Word Depth
· Fast Access Times of 12 ns With a 50-pF Load
· Data Rates up to 67 MHz
· 3-State Outputs
· Package Options Include 44-Pin Plastic Leaded Chip Carrier (FN) and 64-Pin Thin Quad Flat (PAG, PM) Packages

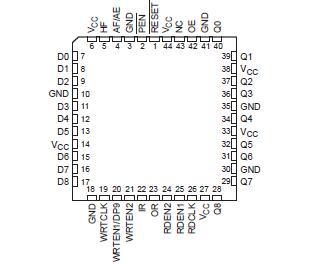

Pinout




Specifications

Supply voltage range, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 7 V Input voltage range, VI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 7 V Voltage range applied to a disabled 3-state output . . . . . . . . . .0.5 V to 5.5 V Package thermal impedance, qJA (see Note 1): FN package . . . . . . . . . 39°C/W PN package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . .. . . . .. . . 62°C/W Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . 65°C to 150°C


Description

The SN74ACT7807 is a 2048-word by 9-bit FIFO with high speed and fast access times. It processes data at rates up to 67 MHz and access times of 12 ns in a bit-parallel format. Data outputs are noninverting with respect to the data inputs. Expansion is easily accomplished in both word width and word depth.

The write-clock (WRTCLK) and read-clock (RDCLK) inputs of SN74ACT7807 should be free running and can be asynchronous or coincident. Data is written to memory on the rising edge of WRTCLK when the write-enable (WRTEN1/DP9, WRTEN2) inputs are high and the input-ready (IR) flag output is high. Data is read from memory on the rising edge of RDCLK when the read-enable (RDEN1, RDEN2) and output-enable (OE) inputs are high and the output-ready (OR) flag output is high. The first word written to memory is clocked through to the output buffer regardless of the levels on RDEN1, RDEN2, and OE. The OR flag indicates that valid data is present on the output buffer.

The SN74ACT7807 FIFO can be reset asynchronous to WRTCLK and RDCLK. RESET must be asserted while at least four WRTCLK and four RDCLK cycles occur to clear the synchronizing registers. Resetting the FIFO initializes the IR, OR, and half-full (HF) flags low and the almost-full/almost-empty (AF/AE) flag high. The FIFO must be reset upon power up.

The SN74ACT7807 is characterized for operation from 0°C to 70°C.
