Description: The AHC04 devices contain six independent inverters. These devices perform the Boolean function Y =A.
- Table of contents:
SN74AHC04
-
Suppliers
DataSheet
General Description
SN74AHC04 General Description
The AHC04 devices contain six independent inverters. These devices perform the Boolean function Y =A.
SN74AHC04 Maximum Ratings
Supply voltage range, VCC...........................................................................................-0.5 V to 7 V
Input voltage range, VI ...............................................................................................-0.5 V to 7 V
Output voltage range, VO...............................................................................-0.5 V to VCC + 0.5 V
Input clamp current, IIK(VI< 0)........................................................................................... -20 mA
Output clamp current, IOK(VO < 0 or VO > VCC ) ................................................................. ±20 mA
Continuous output current, IO(VO = 0 to VCC )................................................................... ±25 mA
Continuous current through VCC or GND.............................................................................±50 mA
Package thermal impedance, qJAD package .........................................................................86/W
DB package.........................................................................96/W
DGV package ....................................................................127/W
N package .........................................................................80/W
NS package .......................................................................76/W
PW package .......................................................................113/W
RGY package .......................................................................47/W
Storage temperature range, Tstg....................................................................................-65 to 150
SN74AHC04 Features
Operating Range 2-V to 5.5-V VCC
Latch-Up Performance Exceeds 250 mA Per JESD 17
ESD Protection Exceeds JESD 22
2000-V Human-Body Model (A114-A)
200-V Machine Model (A115-A)
1000-V Charged-Device Model (C101)
Latch-Up Performance Exceeds 250 mA Per JESD 17
ESD Protection Exceeds JESD 22
2000-V Human-Body Model (A114-A)
200-V Machine Model (A115-A)
1000-V Charged-Device Model (C101)

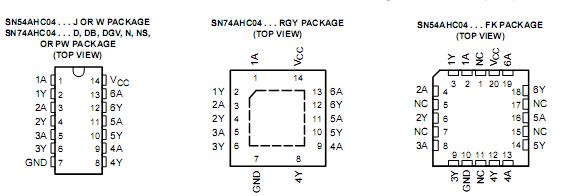

SN74AHC04 Connection Diagram
SN74AHC04
PDF/DataSheet Download
- Datasheet: SN74AHC04
- File Size: 1196382 KB
- Manufacturer: TI [Texas Instruments]
- Click here to Download
