Product Details

Description



Features:

􀀀 EPICE (Enhanced-Performance Implanted CMOS) Process
􀀀 Operating Range 2-V to 5.5-V VCC
􀀀 Latch-Up Performance Exceeds 250 mA Per JESD 17
􀀀 ESD Protection Exceeds JESD 22
    2000-V Human-Body Model (A114-A)
     200-V Machine Model (A115-A)
    1000-V Charged-Device Model (C101)
􀀀 Package Options Include Plastic
    Small-Outline (D),Shrink Small-Outline (DB),Thin Very Small-Outline (DGV),Thin Shrink Small-Outline (PW)
    and Ceramic Flat (W) Packages, Ceramic Chip Carriers (FK), and Standard Plastic (N) and Ceramic (J) DIPs


Pinout

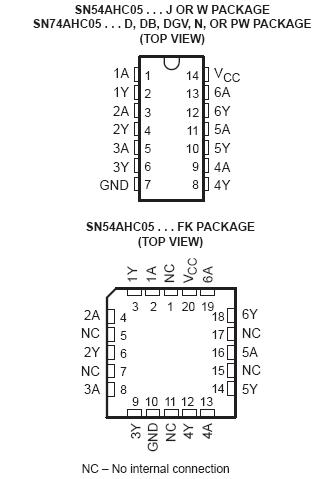

Connection Diagram




Specifications

Supply voltage range, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 7 V
Input voltage range, VI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  0.5 V to 7 V
Output voltage range, VO  . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . .   0.5 V to VCC + 0.5 V
Input clamp current, IIK (VI < 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 mA
Output clamp current, IOK (VO < 0 or VO > VCC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .±20 mA
Continuous output current, IO (VO = 0 to VCC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  ±25 mA
Continuous current through VCC or GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  ±50 mA
Package thermal impedance, JA :D package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . .86°C/W
                                                      DB package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96°C/W
                                                      DGV package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127°C/W
                                                      N package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80°C/W
                                                      PW package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113°C/W
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  65°C to 150°C


Description

The 'AHC05 devices contain six independent inverters. These  'AHC05 devices perform the Boolean function Y = A.The open-drain outputs require pullup resistors to perform correctly. They can be connected to other open-drain outputs to implement active-low wired-OR or active-high wired-AND functions.The SN54AHC05 is characterized for operation over the full military temperature range of 55°C to 125°C. The SN74AHC05 is characterized for operation from 40°C to 85°C.
