SN74AHC125

Features: 􀀀 Operating Range 2-V to 5.5-V VCC􀀀 Latch-Up Performance Exceeds 250 mA Per JESD 17PinoutSpecificationsSupply voltage range, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 7 VInput voltage range, VI . . . . . . . . . ....

product image

SN74AHC125 Picture
See larger image
SeekIC No. : 004497959 Detail

SN74AHC125: Features: 􀀀 Operating Range 2-V to 5.5-V VCC􀀀 Latch-Up Performance Exceeds 250 mA Per JESD 17PinoutSpecificationsSupply voltage range, VCC . . . . . . . . . . . . . . . . . . . . ....

SN74AHC125 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN74AHC125
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

􀀀 Operating Range 2-V to 5.5-V VCC
􀀀 Latch-Up Performance Exceeds 250 mA Per JESD 17


Pinout

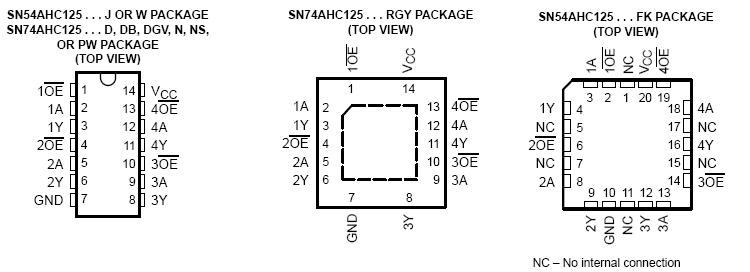

Connection Diagram


Specifications

Supply voltage range, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 7 V
Input voltage range, VI  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .     0.5 V to 7 V
Output voltage range, VO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to VCC + 0.5 V
Input clamp current, IIK (VI < 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 mA
Output clamp current, IOK (VO < 0 or VO > VCC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  ±20 mA
Continuous output current, IO (VO = 0 to VCC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±25 mA
Continuous current through VCC or GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  ±50 mA
Package thermal impedance, JA :D package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86°C/W
                                                      DB package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96°C/W
                                                      DGV package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127°C/W
                                                      N package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80°C/W
                                                      NS package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76°C/W
                                                      PW package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113°C/W
                                                      RGY package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47°C/W
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65°C to 150°C


Description

The 'AHC125 devices are quadruple bus buffer gates featuring independent line drivers with 3-state outputs.Each output is disabled when the associated output-enable ( OE) input is high. When OE is low, the respective gate passes the data from the A input to its Y output.To ensure the high-impedance state of 'AHC125 during power up or power down, OE should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.
