SN74AHC132

Features: 􀀀 Operating Range 2-V to 5.5-V VCC􀀀 Operation From Very Slow Input Transitions􀀀 Temperature-Compensated Threshold Levels􀀀 High Noise Immunity􀀀 Same Pinouts as 'AHC00􀀀 Latch-Up Performance Exceeds 250 mA Per JESD 17􀀀 ESD Prote...

product image

SN74AHC132 Picture
See larger image
SeekIC No. : 004497961 Detail

SN74AHC132: Features: 􀀀 Operating Range 2-V to 5.5-V VCC􀀀 Operation From Very Slow Input Transitions􀀀 Temperature-Compensated Threshold Levels􀀀 High Noise Immunity􀀀 ...

SN74AHC132 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN74AHC132
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

􀀀 Operating Range 2-V to 5.5-V VCC
􀀀 Operation From Very Slow Input Transitions
􀀀 Temperature-Compensated Threshold Levels
􀀀 High Noise Immunity
􀀀 Same Pinouts as 'AHC00
􀀀 Latch-Up Performance Exceeds 250 mA Per JESD 17
􀀀 ESD Protection Exceeds JESD 22
    2000-V Human-Body Model (A114-A)
    200-V Machine Model (A115-A)
    1000-V Charged-Device Model (C101)


Pinout

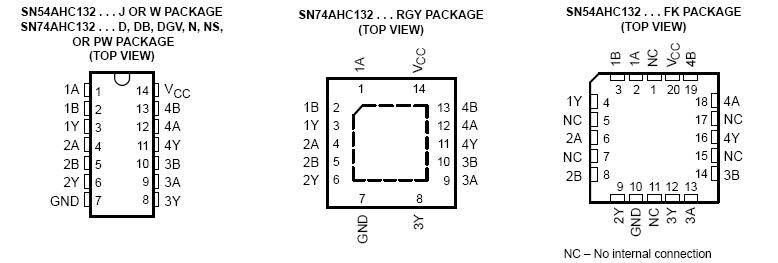

Connection Diagram


Specifications

Supply voltage range, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 7 V
Input voltage range, VI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 7 V
Output voltage range, VO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to VCC + 0.5 V
Input clamp current, IIK (VI < 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 mA
Output clamp current, IOK (VO < 0 or VO > VCC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±20 mA
Continuous output current, IO (VO = 0 to VCC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±25 mA
Continuous current through VCC or GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±50 mA
Package thermal impedance, JA :D package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86°C/W
                                                      DB package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96°C/W
                                                      DGV package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127°C/W
                                                      N package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80°C/W
                                                      NS package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76°C/W
                                                      PW package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113°C/W
                                                      RGY package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47°C/W
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65°C to 150°C


Description

The 'AHC132 devices are quadruple positive-NAND gates designed for 2-V to 5.5-V VCC operation.These  'AHC132 devices perform the Boolean function Y =A • B or Y = A + B in positive logic.
