Purchase SN74AHC16240, In-stock SN74AHC16240 From SeekIC.
Part Number: SN74AHC16240
Description: The 'AHC16240 devices are 16-bit buffers and line drivers designed specifically to improve the performance and density ...
- Table of contents:
SN74AHC16240
-
Suppliers
DataSheet
General Description
SN74AHC16240 General Description
The 'AHC16240 devices are 16-bit buffers and line drivers designed specifically to improve the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters.
These devices can be used as four 4-bit buffers, two 8-bit buffers, or one 16-bit buffer. They provide inverting outputs and symmetrical active-low output-enable (OE) inputs.
To ensure the high-impedance state during power up or power down, OE should be tied to V through a pullup CC
resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.
The SN54AHC16240 is characterized for operation over the full military temperature range of 55°C to 125°C. The SN74AHC16240 is characterized for operation from 40°C to 85°C.
SN74AHC16240 Maximum Ratings
Supply voltage range, V . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 7 V CC
Input voltage range, V (see Note 1) . . . . . . . . . . . . . . . . . . . . 0.5 V to 7 V I
Output voltage range, VO (see Note 1) . . . . . . . . . . . 0.5 V to V + 0.5 V CC
Input clamp current, IIK (VI < 0) . . . . . . . . . . . . . . . . .. . . . . . . ... . . . 20 mA
Output clamp current, IOK (VO < 0 or VO > VCC ) . . . . . . . ........... . . . 20 mA
Continuous output current, IO (V O = 0 to VCC ) . . . . . . . . . . . ......... . . 25 mA
Continuous current through each V CC or GND . . . . . . . . . . . . . . . . . ±75 mA
Package thermal impedance, q JA (see Note 2): DGG package . .. . . . 70°C/W
DGV package .. . . . . . 58°C/W
DL package . . . . . . . . 63°C/W
Storage temperature range, T 65. . . . . . . . . . . . . . . . . . . . . . . . . C to 150 C
Input voltage range, V (see Note 1) . . . . . . . . . . . . . . . . . . . . 0.5 V to 7 V I
Output voltage range, VO (see Note 1) . . . . . . . . . . . 0.5 V to V + 0.5 V CC
Input clamp current, IIK (VI < 0) . . . . . . . . . . . . . . . . .. . . . . . . ... . . . 20 mA
Output clamp current, IOK (VO < 0 or VO > VCC ) . . . . . . . ........... . . . 20 mA
Continuous output current, IO (V O = 0 to VCC ) . . . . . . . . . . . ......... . . 25 mA
Continuous current through each V CC or GND . . . . . . . . . . . . . . . . . ±75 mA
Package thermal impedance, q JA (see Note 2): DGG package . .. . . . 70°C/W
DGV package .. . . . . . 58°C/W
DL package . . . . . . . . 63°C/W
Storage temperature range, T 65. . . . . . . . . . . . . . . . . . . . . . . . . C to 150 C
SN74AHC16240 Features
Members of the Texas Instruments Widebus(TM) Family
EPIC(TM) (Enhanced-Performance Implanted CMOS) Process
Operating Range 2-V to 5.5-V V CC
Distributed V and GND Pins MinimizeCC High-Speed Switching Noise
Flow-Through Architecture Optimizes PCB Layout
Latch-Up Performance Exceeds 250 mA Per JESD 17
Package Options Include Plastic Shrink Small-Outline (DL), Thin Shrink Small-Outline (DGG), and Thin Very Small-Outline (DGV) Packages and 380-mil Fine-Pitch Ceramic Flat (WD) Package Using 25-mil Center-to-Center Spacings

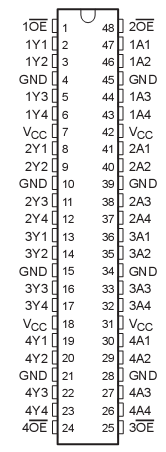

SN74AHC16240 Connection Diagram
SN74AHC16240
PDF/DataSheet Download
- Datasheet: SN74AHC16240
- File Size: 130444 KB
- Manufacturer: TI [Texas Instruments]
- Click here to Download
