SN74AHC1G32DBVRG4

Mounting Style : SMD/SMT
Packaging : Reel
Maximum Operating Temperature : + 85 C
Number of Gates : 1
Number of Lines (Input / Output) : 2 / 1
Supply Voltage - Max : 5.5 V
Product : OR
High Level Output Current : - 8 mA
Low Level Output Current : 8 mA
Propagation Delay Time : 11.4 ns
Supply Voltage - Min : 2 V
Logic Family : 74AHC
Package / Case : SOT-23


Features:

Operating Range of 2 V to 5.5 V
Max t_pd of 7 ns at 5 V
Low Power Consumption, 10-µA Max I_CC
±8-mA Output Drive at 5 V
Schmitt-Trigger Action at All Inputs Makes the Circuit Tolerant for Slower Input Rise and Fall Time
Latch-Up Performance Exceeds 250 mA Per JESD 17
ESD Protection Exceeds JESD 22
  −  2000-V Human-Body Model (A114-A)
  −  200-V Machine Model (A115-A)
  −  1000-V Charged-Device Model (C101)

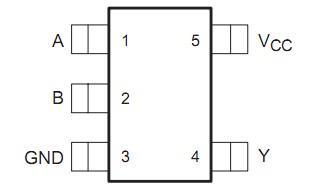

Pinout




Specifications

Supply voltage range, V_CC   . . . . . . . . . . . . . . . . . . . . . . . . . −0.5 V to 7 V
Input voltage range, V_I (see Note 1)   . . . . . . . . . . . . . . . . . −0.5 V to 7 V
Output voltage range, V_O (see Note 1)   . . . . . . . . .−0.5 V to V_CC + 0.5 V
Input clamp current, IIK (V_I < 0)   . . . . . . . . . . . . . . . . . . . . . . . . . −20 mA
Output clamp current, IOK (V_O < 0 or V_O > V_CC)  . . . . . . . . . . . . . ±20 mA
Continuous output current, I_O (V_O = 0 to V_CC)  . . . . . . . . . . . . . . ±25 mA
Continuous current through V_CC or GND  . . . . . . . . . . . . . . . . . . . ±50 mA
Package thermal impedance, _JA (see Note 2): DBV package   .  206°C/W
                                                                           DCK package   . 252°C/W
                                                                            DRL package   . 142°C/W
Storage temperature range, T_stg  . . . . . . . . . . . . . . . . . . −65°C to 150°C
† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
NOTES: 1. The input and output voltage ratings may be exceeded if the input and output current ratings are observed.
             2. The package thermal impedance is calculated in accordance with JESD 51-7.


Description

The SN74AHC1G32 is a single 2-input positive-AND gate. The device performs the Boolean function Y = A • B or Y = A + B in positive logic.

Parameters:

Technical/Catalog Information	SN74AHC1G32DBVRG4
Vendor	Texas Instruments
Category	Integrated Circuits (ICs)
Number of Circuits	1 - Single
Package / Case	SOT-23-5
Logic Type	OR Gate
Packaging	Tape & Reel (TR)
Mounting Type	Surface Mount
Number of Inputs	2
Current - Output High, Low	8mA, 8mA
Supply Voltage	2 V ~ 5.5 V
Operating Temperature	-40°C ~ 85°C
Voltage - Supply	2 V ~ 5.5 V
Drawing Number	296; 4073253-4; DBV; 5
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	SN74AHC1G32DBVRG4 SN74AHC1G32DBVRG4
