SN74AHC4066

Features: 2-V to 5.5-V VCCOperationSupports Mixed-Mode Voltage Operation onAll Ports High On-Off Output-Voltage Ratio Low Crosstalk Between Switches Individual Switch Controls Extremely Low Input Current ESD Protection Exceeds JESD 22 2000-V Human-Body Model (A114-A) 200-V Machine Model (A115-A)...

product image

SN74AHC4066 Picture
See larger image
SeekIC No. : 004497994 Detail

SN74AHC4066: Features: 2-V to 5.5-V VCCOperationSupports Mixed-Mode Voltage Operation onAll Ports High On-Off Output-Voltage Ratio Low Crosstalk Between Switches Individual Switch Controls Extremely Low Input Cu...

SN74AHC4066 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN74AHC4066
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

2-V to 5.5-V VCC Operation
Supports Mixed-Mode Voltage Operation onAll Ports
High On-Off Output-Voltage Ratio
Low Crosstalk Between Switches
Individual Switch Controls
Extremely Low Input Current
ESD Protection Exceeds JESD 22
    2000-V Human-Body Model (A114-A)
    200-V Machine Model (A115-A)
    1000-V Charged-Device Model (C101)


Pinout

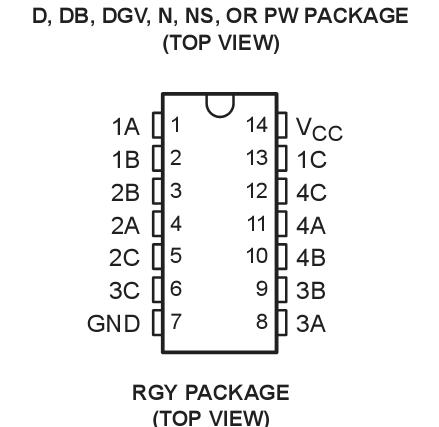

Connection Diagram


Specifications

Supply voltage range, VCC(see Note 1)  . . . . . . . .  . . . . . . . . . . . . . . . . . . . .  0.5 V to 7 V
Input voltage range, VI(see Note 1)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  0.5 V to 7 V
Switch I/O voltage range, VIO (see Notes 1 and 2)  . . .  . . . . . . . . . . 0.5 V to VCC + 0.5 V
Control-input clamp current, IIK (VI< 0)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  20 mA
I/O diode current, IIOK (VIO < 0 or VIO> VCC )  . . . .  . . . . . . . . . . . . . . . . . . . . . . . ± 50 mA
On-state switch current, IT (VIO = 0 to VCC)  . . . . . . . . . .  . . . . . . . . . . . . . . . . . . .± 25 mA
Continuous current through VCC or GND  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  ±50 mA
Package thermal impedance, JA (see Note 3): D package  . . . . . . . . . . . . . . . . . . . 86/W
                                                    (see Note 3): DB package  . . . . . . . . . . . . . . . . . .  96/W
                                                    (see Note 3): DGV package  .  . . . . . . . . . . . . . .  127/W
                                                    (see Note 3): N package  . . . . .  . . . . . . . . . . . . .  80/W
                                                    (see Note 3): NS package   . . . . . . . . . . . . . . . . . . 76/W
                                                    (see Note 3): PW package  . . . . . . . . . . . .  . . . .  113/W
                                                    (see Note 4): RGY package   . . . . . . . . . . . . . . . . . 47/W
Storage temperature range, Tstg   . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . .  65 to 150


Description

This SN74AHC4066 quadruple silicon-gate CMOS analog switchis designed for 2-V to 5.5-V VCC operation.

This SN74AHC4066 switch is designed to handle both analog anddigital signals. Each switch permits signals withamplitudes up to 5.5 V (peak) to be transmitted ineither direction.

Each SN74AHC4066 switch section has its own enable-inputcontrol (C). A high-level voltage applied to C turnson the associated switch section.Applications include signal gating, chopping,modulation or demodulation (modem), and signalmultiplexing for analog-to-digital anddigital-to-analog conversion systems.
