SN74AHC573

Features: Operating Range 2-V to 5.5-V VCC3-State Outputs Directly Drive Bus LinesLatch-Up Performance Exceeds 250 mA Per JESD 17ApplicationAudio www.ti.com/audioAutomotivewww.ti.com/automotiveBroadband www.ti.com/broadbandDigital Control www.ti.com/digitalcontrolMilitary www.ti.com/militaryOptica...

product image

SN74AHC573 Picture
See larger image
SeekIC No. : 004497997 Detail

SN74AHC573: Features: Operating Range 2-V to 5.5-V VCC3-State Outputs Directly Drive Bus LinesLatch-Up Performance Exceeds 250 mA Per JESD 17ApplicationAudio www.ti.com/audioAutomotivewww.ti.com/automotiveBroad...

SN74AHC573 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN74AHC573
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 Operating Range 2-V to 5.5-V VCC
 3-State Outputs Directly Drive Bus Lines
 Latch-Up Performance Exceeds 250 mA Per JESD 17


Application

Audio                                     www.ti.com/audio
Automotive                            www.ti.com/automotive
Broadband                            www.ti.com/broadband
Digital Control                       www.ti.com/digitalcontrol
Military                                  www.ti.com/military
Optical Networking               www.ti.com/opticalnetwork
Security                                www.ti.com/security
Telephony                            www.ti.com/telephony
Video & Imaging                  www.ti.com/video
Wireless                              www.ti.com/wireless


Pinout

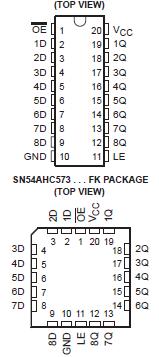

Connection Diagram


Specifications

Supply voltage range, VCC  . . . . . . . . . . . . . . . . . . . . . . . . −0.5 V to 7 V
Input voltage range, VI (see Note 1) .. . . . . . . . . . . . . . . . −0.5 V to 7 V
Output voltage range, VO (see Note 1) . . . . . . . . −0.5 V to VCC + 0.5 V
Input clamp current, IIK (VI < 0)  . . . . . . . . . . . . . . . . . . . . . . . . −20 mA
Output clamp current, IOK (VO < 0 or VO > VCC)  . . . . . . . . . . . ±20 mA
Continuous output current, IO (VO = 0 to VCC)   . . . .  . . . . . . . ±25 mA
Continuous current through VCC or GND. . . . . . . . . . . . . . . . . . ±75 mA
Package thermal impedance, JA (see Note 2): DB package  . . 70°C/W
                                                                          DGV package. . 92°C/W
                                                                          DW package . . 58°C/W
                                                                          N package. . . . 69°C/W
                                                                          NS package. . . 60°C/W
                                                                          PW package . . 83°C/W
Storage temperature range, Tstg .  .. . . . . . . . . .  . . . −65°C to 150°C



Description

The 'AHC573 devices are octal transparent D-type latches designed for 2-V to 5.5-V VCC operation.

When the latch-enable (LE) input of 'AHC573  is high, the Q outputs follow the data (D) inputs. When LE is low, the Q outputs are latched at the logic levels of the D inputs.
