SN74AHCT08

Features: 􀀀 Inputs Are TTL-Voltage Compatible􀀀 Latch-Up Performance Exceeds 250 mA Per JESD 17􀀀 ESD Protection Exceeds JESD 22 2000-V Human-Body Model (A114-A) 200-V Machine Model (A115-A) 1000-V Charged-Device Model (C101)ApplicationAudiowww.ti.com/audioAutomotive www...

product image

SN74AHCT08 Picture
See larger image
SeekIC No. : 004498007 Detail

SN74AHCT08: Features: 􀀀 Inputs Are TTL-Voltage Compatible􀀀 Latch-Up Performance Exceeds 250 mA Per JESD 17􀀀 ESD Protection Exceeds JESD 22 2000-V Human-Body Model (A114-A) 200-V Mac...

SN74AHCT08 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN74AHCT08
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

􀀀 Inputs Are TTL-Voltage Compatible
􀀀 Latch-Up Performance Exceeds 250 mA Per JESD 17
􀀀 ESD Protection Exceeds JESD 22
    2000-V Human-Body Model (A114-A)
    200-V Machine Model (A115-A)
     1000-V Charged-Device Model (C101)


Application

Audio                                www.ti.com/audio
Automotive                       www.ti.com/automotive
Broadband                        www.ti.com/broadband
Digital Control                   www.ti.com/digitalcontrol
Military                              www.ti.com/military
Optical Networking           www.ti.com/opticalnetwork
Security                            www.ti.com/security
Telephony                        www.ti.com/telephony
Video & Imaging               www.ti.com/video
Wireless                           www.ti.com/wireless


Pinout

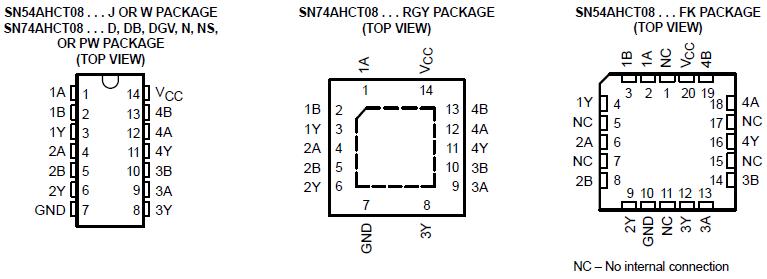

Connection Diagram


Specifications

Supply voltage range, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . 0.5 V to 7 V
Input voltage range, VI (see Note 1)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 7 V
Output voltage range, VO (see Note 1)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to VCC + 0.5 V
Input clamp current, IIK (VI < 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 mA
Output clamp current, IOK (VO < 0 or VO > VCC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±20 mA
Continuous output current, IO (VO = 0 to VCC)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . ±25 mA
Continuous current through VCC or GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±50 mA
Package thermal impedance, JA (see Note 2): D package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . 86°C/W
                                                    (see Note 2): DB package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96°C/W
                                                    (see Note 2): DGV package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127°C/W
                                                    (see Note 2): N package . . . . . . . . . . . . . . . . . . . . . . . . .. . .  . . . . . 80°C/W
                                                    (see Note 2): NS package . . . . . . . . . . . . . . . . . . . . . . . .. . . .. . . . . 76°C/W
                                                     (see Note 2): PW package . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . 113°C/W
                                                    (see Note 3): RGY package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47°C/W
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65°C to 150°C
† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
NOTES: 1. The input and output voltage ratings may be exceeded if the input and output current ratings are observed.
             2. The package thermal impedance is calculated in accordance with JESD 51-7.
             3. The package thermal impedance is calculated in accordance with JESD 51-5.


Description

The 'AHCT08 devices are quadruple 2-input positive-AND gates. These  'AHCT08  devices perform the Boolean function Y = A • B or Y = A+B in positive logic.
