SN74AHCT16240

Features:

Members of the Texas Instruments Widebus(TM) Family
EPIC(TM) (Enhanced-Performance Implanted CMOS) Process
Inputs Are TTL-Voltage Compatible
Distributed V  and GND Pins Minimize CC High-Speed Switching Noise
Flow-Through Architecture Optimizes PCB
Layout Latch-Up Performance Exceeds 250 mA Per JESD 17
ESD Protection Exceeds 2000 V Per MIL-STD-883, Method 3015
Package Options Include Plastic Shrink Small-Outline (DL), Thin Shrink Small-Outline (DGG), and Thin Very Small-Outline (DGV) Packages and 380-mil Fine-Pitch Ceramic Flat (WD) Package Using 25-mil Center-to-Center Spacings

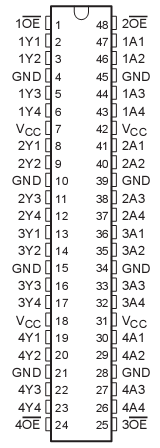

Pinout




Specifications

Supply voltage range, V   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . .  0.5 V to 7 V _CC
Input voltage range, V  (see Note 1)  . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . .  0.5 V to 7 V I
Output voltage range, V  (see Note 1)  . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to V  + 0.5 V O _CC
Input clamp current, I  (V < 0)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . .  20 mA IK I
Output clamp current, I  (V  < 0 or V  > V )  . . . . . . . . . . . . . . . . . . . . . . . . . . . .  20 mA OK O O CC ±
Continuous output current, I  (V  = 0 to V )  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  25 mA O O CC ±
Continuous current through each V  or GND  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  75 mA CC ±
Package thermal impedance, q JA (see Note 2): DGG package  . . . . . . . . . . . . . . . . . . . . . . 70°C/W
                                                                           DGV package  . . . . . . . . . . . . . . .... . . . . . . 58°C/W
                                                                           DL package  . . . . . . . . . . . . . . . . . . . . . . . . 63°C/W
Storage temperature range, T  65. . . . . . . . . . . . . . . . . . . . . . . ................. . . . .. . . . . .  C to 150 C



Description

The 'AHCT16240 devices are 16-bit buffers and line drivers designed specifically to improve the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters.

These 'AHCT16240 devices can be used as four 4-bit buffers, two 8-bit buffers, or one 16-bit buffer. They provide inverting outputs and symmetrical active-low output-enable (OE) inputs.

To ensure the high-impedance state of 'AHCT16240 during power up or power down, OE should be tied to V  through a pullup CC resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.The SN54AHCT16240 is characterized for operation over the full military temperature range of 55°C to 125°C. The SN74AHCT16240 is characterized for operation from 40°C to 85°C.
