Features:

·  Bidirectional Quadruple-Bus Transceivers
  for Driving MOS Devices
·  I/O Ports Have 25-W Series Resistors, So
  No External Resistors Are Required
·  Package Options Include Plastic
  Small-Outline (DW) Package and Standard
  Plastic (N) 300-mil DIPs


Pinout

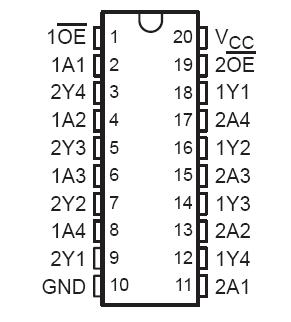

Connection Diagram


Specifications

Supply voltage, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 V
Input voltage, VI: All inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 V
I/O ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.5 V
Operating free-air temperature range, TA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0°C to 70°C
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65°C to 70°C
Package thermal impedance, qJA (see Note 1): DW package . . . . . . . . . . . . . . . . . . . . . . . 97°C/W
N package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67°C/W
‡ Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and
functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not
implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
NOTE 1: The package thermal impedance is calculated in accordance with JESD 51, except for through hole packages, which use a trace length of zero.


Description

This SN74ALS2240 octal buffer and line driver/MOS driver is designed to drive the capacitive inputs of MOS devices and to improve the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters. This device features high fan-out and improved fan-in.

The SN74ALS2240 is characterized for operation from 0°C to 70°C.
