SN74ALS273

Features: • Contain Eight Flip-Flops With Single-Rail Outputs• Buffered Clock and Direct-Clear Inputs• Individual Data Input to Each Flip-Flop• Applications Include: Buffer/Storage Registers Shift RegistersPattern Generators• Package Options Include Plastic Small-Outl...

product image

SN74ALS273 Picture
See larger image
SeekIC No. : 004498125 Detail

SN74ALS273: Features: • Contain Eight Flip-Flops With Single-Rail Outputs• Buffered Clock and Direct-Clear Inputs• Individual Data Input to Each Flip-Flop• Applications Include: Buffer/S...

SN74ALS273 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN74ALS273
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Contain Eight Flip-Flops With Single-Rail Outputs
• Buffered Clock and Direct-Clear Inputs
• Individual Data Input to Each Flip-Flop
• Applications Include:
  Buffer/Storage Registers
  Shift Registers
  Pattern Generators
• Package Options Include Plastic
  Small-Outline (DW) Packages, Ceramic
  Chip Carriers (FK), and Standard Plastic (N)
  and Ceramic (J) 300-mil DIPs


Pinout

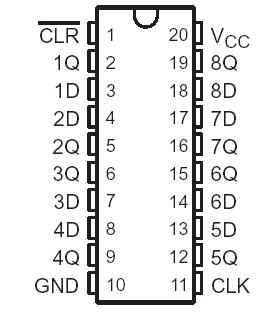

Connection Diagram


Specifications

Supply voltage, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . .7 V
Input voltage, VI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 V
Operating free-air temperature range, TA:SN54ALS273 . . . . . . . . . . . .55°C to 125°C
                                                             SN74ALS273 . . . . . . . . . . . . . . . . . .0°C to 70°C
Storage temperature range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65°C to 150°C


Description

These SN74ALS273 octal positive-edge-triggered flip-flops utilize TTL circuitry to implement D-type flip-flop logic with a direct-clear (CLR) input.

Information at the data (D) inputs meeting the setup-time requirements is transferred to the Q outputs on the positive-going edge of the clock (CLK) pulse. Clock triggering occurs at a particular voltage level and is not directly related to the transition time of the positive-going pulse. When CLK is at either the high or low level, the D input signal has no effect at the output.The SN54ALS273 is characterized for operation over the full military temperature range of 55°C to 125°C. The SN74ALS273 is characterized for operation from 0°C to 70°C.
