Product Details

Description



Features:

• Package Options Include Plastic Small
  Outline Packages, Ceramic Chip Carriers,
  and Standard Plastic and Ceramic 300-mil DIPs
• Dependable Texas Instruments Quality and Reliability

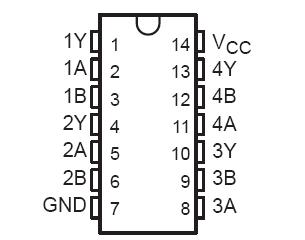

Pinout

Connection Diagram


Specifications

Supply voltage, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 V
Input voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 V
Operating free-air temperature range: SN54ALS28A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55°C to 125°C
SN74ALS28A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0°C to 70°C
Storage temperature range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65°C to 150°C


Description

These SN54ALS28A devices contain four independent 2-input NOR buffer gates. They perform the Boolean functions Y = A+B or Y = A•B in positive logic.

The SN54ALS28A is characterized for operation over the full military temperature range of 55°C to 125°C. The SN74ALS28A is characterized for operation from 0°C to 70°C.
