Features:

• Functionally Equivalent to AMD's AM29827
  and AM29828
• 3-State Outputs Drive Bus Lines or Buffer
  Memory Address Registers
• pnp Inputs Reduce dc Loading
• Data Flow-Through Pinout (All Inputs on
  Opposite Side From Outputs)
• Power-Up High-Impedance State
• Package Options Include Plastic
  Small-Outline (DW) Packages and Standard
  Plastic (NT) 300-mil DIPs


Pinout

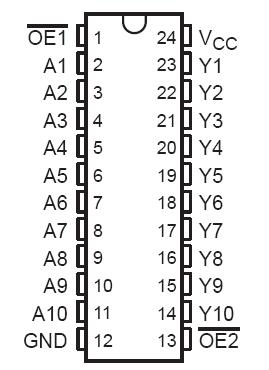

Connection Diagram


Specifications

Supply voltage, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 V
Input voltage, VI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5.5 V
Voltage applied to a disabled 3-state output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.5 V
Operating free-air temperature range, TA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0°C to 70°C
Storage temperature range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65°C to 150°C


Description

These  SN74ALS29828 10-bit buffers and bus drivers provide high-performance bus interface for wide data paths or buses carrying parity.

The 3-state control gate is a 2-input NOR such that if either output-enable (OE1 or OE2) input is high, all ten outputs are in the high-impedance state.The SN74ALS29827 provides true data and the SN74ALS29828 provides inverted data at their respective outputs.The SN74ALS29827 and SN74ALS29828 are characterized for operation from 0°C to 70°C.
