Product Details

Description



Features:

• Functionally Equivalent to AM29861 and AM29862
• Choice of True or Inverting Logic
• Power-Up High-Impedance State
• Package Options include Plastic Small
  Outline Packages, Plastic Chip Carriers, and
  Standard Plastic DIPs

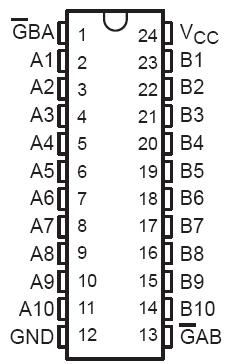

Pinout

Connection Diagram


Specifications

Supply voltage, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 V
Input voltage: All inputs and I/O ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.5 V
Operating free-air temperature range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0°C to 70°C
Storage temperature range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65°C to 150°C


Description

These SN74ALS29862 10-bit bus transceivers are designed for asynchronous two-way communication between data buses. The control function implementation allows for maximum flexibility in timing.

These SN74ALS29862 devices allow data transmission from the A bus to the B bus or from the B bus to the A bus depending upon the logic levels at the enable inputs (GBA and GAB).

The enable inputs of SN74ALS29862 can be used to disable the device so that the buses are effectively isolated. The SN74' family is characterized for operation from 0°C to 70°C.
