SN74ALS641A

Features: • Bidirectional Bus Transceivers in High-Density 20-Pin Packages• Choice of True or Inverting Logic• Package Options Include Plastic Small-Outline (DW) Packages and Standard Plastic (N) 300-mil DIPsPinoutSpecificationsSupply voltage, VCC . . . . . . . . . . . . . . . . ...

product image

SN74ALS641A Picture
See larger image
SeekIC No. : 004498173 Detail

SN74ALS641A: Features: • Bidirectional Bus Transceivers in High-Density 20-Pin Packages• Choice of True or Inverting Logic• Package Options Include Plastic Small-Outline (DW) Packages and Stand...

SN74ALS641A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN74ALS641A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Bidirectional Bus Transceivers in
  High-Density 20-Pin Packages
• Choice of True or Inverting Logic
• Package Options Include Plastic
  Small-Outline (DW) Packages and
  Standard Plastic (N) 300-mil DIPs


Pinout

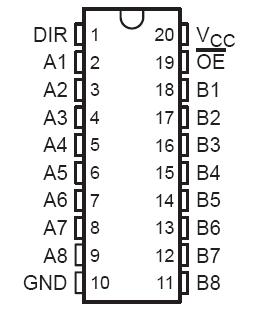

Connection Diagram


Specifications

Supply voltage, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 V
Input voltage, VI: All inputs and I/O ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 V
Operating free-air temperature range, TA: SN74ALS641A, SN74ALS642A . . . . . . . . . . . . . . . . . 0°C to 70°C
Storage temperature range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65°C to 150°C


Description

These SN74ALS641A, SN74ALS642A, and SN74AS641 octal bus transceivers are designed for asynchronous two-way communication between data buses. These devices transmit data from the A bus to the B bus or from the B bus to the A bus, depending upon the level at the direction-control (DIR) input. The output-enable (OE) input disables the device so that the buses are effectively isolated.

The -1 versions of the SN74ALS641A and SN74ALS642A are identical to the standard versions, except that the recommended maximum IOL is increased to 48 mA in the -1 versions.The SN74ALS641A, SN74ALS642A, and SN74AS641 are characterized for operation from 0°C to 70°C.
