SN74ALS746

Features: • 3-State Outputs Drive Bus Lines or Buffer Memory Address Registers• Input Pullup Resistors Added for Data-Bus Termination• Data Flow-Through Pinout (All Inputs on Opposite Side From Outputs)• Package Options Include Plastic Small-Outline (DW) Packages and Standa...

product image

SN74ALS746 Picture
See larger image
SeekIC No. : 004498184 Detail

SN74ALS746: Features: • 3-State Outputs Drive Bus Lines or Buffer Memory Address Registers• Input Pullup Resistors Added for Data-Bus Termination• Data Flow-Through Pinout (All Inputs on Oppos...

SN74ALS746 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN74ALS746
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 3-State Outputs Drive Bus Lines or Buffer
  Memory Address Registers
• Input Pullup Resistors Added for Data-Bus Termination
• Data Flow-Through Pinout (All Inputs on
  Opposite Side From Outputs)
• Package Options Include Plastic
  Small-Outline (DW) Packages and Standard
  Plastic (N) 300-mil DIPs


Pinout

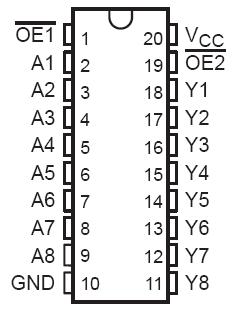

Connection Diagram


Specifications

Supply voltage, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 V
Input voltage, VI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 V
Operating free-air temperature range, TA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0°C to 70°C
Storage temperature range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65°C to 150°C


Description

This SN74ALS746 octal buffer and line driver is designed to have the performance of the 4ALS240A and, at the same time, offers a pinout with inputs and outputs on opposite sides of the package. This arrangement facilitates printed-circuit-board layout. In addition, 20-kW resistors have been added between all inputs and VCC. This eliminates adding external resistors in applications where the data bus must be at a high level when all other connecting devices are at a high-impedance state.

The 3-state control gate of SN74ALS746 is a 2-input NOR such that if either output-enable (OE1 or OE2) input is high, all eight outputs are in the high-impedance state.

The SN74ALS746 provides inverted data at the outputs.

The SN74ALS746 is characterized for operation from 0°C to 70°C.
