MFG:Texas Instruments Category:Integrated Circuits (ICs)
Category: Integrated Circuits (ICs)
MFG: Texas Instruments

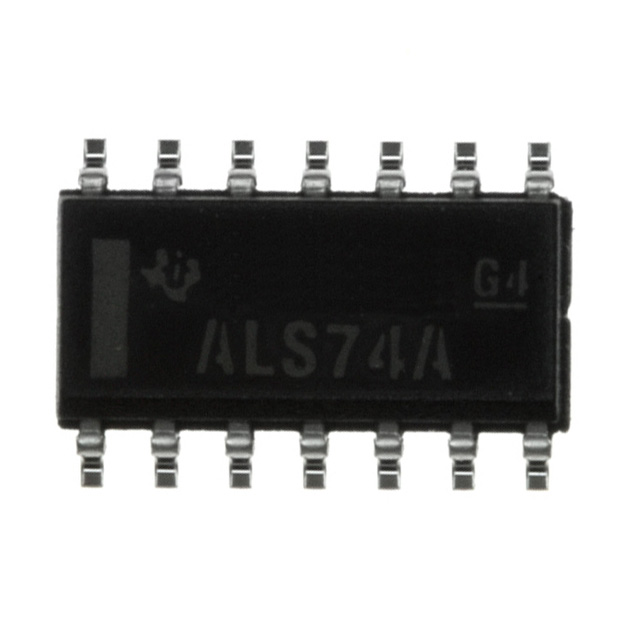

Descriptions: IC FLIP FLOP DUAL D 14-SOIC
1000
.31920
319.20
| Technical/Catalog Information | SN74ALS74ADG4 |
| Vendor | Texas Instruments |
| Category | Integrated Circuits (ICs) |
| Mounting Type | Surface Mount |
| Package / Case | 14-SOIC (3.9mm Width), 14-SOL |
| Function | Set and Reset |
| Number of Bits per Element | 1 |
| Number of Elements | 2 - Dual |
| Current - Output High, Low | 400A, 8mA |
| Output Type | Differential |
| Trigger Type | Positive Edge |
| Type | D-Type |
| Packaging | Tube |
| Operating Temperature | 0°C ~ 70°C |
| Delay Time - Propagation | 5ns |
| Frequency - Clock | 34MHz |
| Voltage - Supply | 4.5 V ~ 5.5 V |
| Drawing Number | 296; 4040047-3; D; 14 |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | SN74ALS74ADG4 SN74ALS74ADG4 |
SN7000
PDF/DataSheet Download
IC FLIP FLOP DUAL D 14-SOIC
IC DUAL D-TYPE FLIP-FLOP 14-SOIC
These SN54ALS74A and SN54AS74, SN74ALS74A and SN74AS74devices contain two independent D-type positive-edge triggered flip-flops. A low level at the Preset or Clear inputs sets or resets the outputs regardless of the levels of the other inputs. When Preset an...
