SN74ALVC16240

Features: Member of the Texas Instruments WidebusTM FamilyEPICTM (Enhanced-Performance Implanted CMOS) Submicron ProcessDesigned to Facilitate Incident-Wave Switching for Line Impedances of 50 or GreaterTypical VOLP (Output Ground Bounce) < 0.8 V at VCC = 3.3 V, TA = 25°CTypical VOHV (Output V...

product image

SN74ALVC16240 Picture
See larger image
SeekIC No. : 004498218 Detail

SN74ALVC16240: Features: Member of the Texas Instruments WidebusTM FamilyEPICTM (Enhanced-Performance Implanted CMOS) Submicron ProcessDesigned to Facilitate Incident-Wave Switching for Line Impedances of 50 or G...

SN74ALVC16240 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN74ALVC16240
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 Member of the Texas Instruments WidebusTM Family
 EPICTM (Enhanced-Performance Implanted CMOS) Submicron Process
 Designed to Facilitate Incident-Wave Switching for Line Impedances of 50 or Greater
 Typical VOLP (Output Ground Bounce) < 0.8 V at VCC = 3.3 V, TA = 25°C
 Typical VOHV (Output VOH Undershoot) > 2 V at VCC = 3.3 V, TA = 25°C
 Bus Hold on Data Inputs Eliminates the Need for External Pullup/Pulldown
 Package Options Include Plastic 300-mil Shrink Small-Outline (DL) and Thin Shrink Small-Outline (DGG) Packages


Pinout

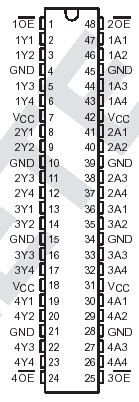

Connection Diagram


Specifications

Supply voltage range, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 4.6 V
Input voltage range, VI (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . .. . . . . . 0.5 V to 4.6 V
Output voltage range, VO (see Notes 1 and 2) . . . . . . . . . . . . . . . .  . . . . . . . .0.5 V to VCC + 0.5 V
Input clamp current, IIK (VI < 0 ) . . . . . . . .  . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . -50 mA
Output clamp current, IOK (VO < 0 or VO > VCC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±50 mA
Continuous output current, IO (VO = 0 to VCC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . .±50 mA
Continuous current through VCC or GND  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ... ±100mA
Maximum power package dissipation at TA = 55°C (in still air)(see Note 2): DL package . .. . .0.85W
                                                                                                                      DL package  . . . . .1.2 W
Storage temperature range ,Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . .65°C to 150°C


Description

This  SN74ALVC16240 16-bit buffer/driver is designed for 2.7-V to 3.6-V VCC operation.

The SN74ALVC16240 is designed specifically to improve both the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters.The device can be used as four 4-bit buffers, two 8-bit buffers, or one 16-bit buffer. It provides inverting outputs and symmetrical OE (active-low output-enable) inputs.

The SN74ALVC16240 is available in TI's shrink small-outline (DL) and thin shrink small-outline (DGG) packages, which provide twice the I/O pin count and functionality of standard small-outline packages in the same printed-circuit-board area.

The SN74ALVC16240 is characterized for operation from 40°C to 85°C.
