SN74ALVC16244A

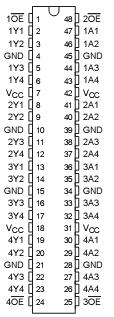

Pinout




Specifications

Supply voltage range, V_CC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 4.6 V
Input voltage range, V_I (see Note 1)  . . .. . . . . . . . . . . . . . . . . . . .0.5 V to 4.6 V
Output voltage range, V_O(see Notes 1 and 2)  . . . . . . . . . .0.5 V to V_CC  + 0.5 V
Input clamp current, I_IK(V_I< 0)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 mA
Output clamp current, I_OK(V_O < 0)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50 mA
Continuous output current, I_O    . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±50 mA
 Continuous current through each V_CC or GND  . . . . . . . . . . . . . . . . . . . . .±100 mA
Package thermal impedance, JA (see Note 3): DGG package  . . . . . . . . . . . 89/W
                                                                           DL package  . . . . . . . . . . . . .94/W
Storage temperature range, T_stg  . . . . . . . . . . . . . . . . . . . . . . . . . . .65 to 150

Description

This SN74ALVC16244A 16-bit buffer/driver is designed for 1.65-V to 3.6-V V_CC operation.

The SN74ALVC16244A is designed specifically to improve the performance and density of 3-state memory-address drivers, clock drivers, and bus-oriented receivers and transmitters.
