SN74ALVC16245

Features: EPICTM (Enhanced-Performance Implanted CMOS) Submicron ProcessMember of the Texas Instruments WidebusTM FamilyESD Protection Exceeds 2000 V Per MIL-STD-883C, Method 3015; Exceeds 200 V Using Machine Model (C = 200 pF, R = 0)Latch-Up Performance Exceeds 250 mA Per JEDEC Standard JESD-17Bu...

product image

SN74ALVC16245 Picture
See larger image
SeekIC No. : 004498220 Detail

SN74ALVC16245: Features: EPICTM (Enhanced-Performance Implanted CMOS) Submicron ProcessMember of the Texas Instruments WidebusTM FamilyESD Protection Exceeds 2000 V Per MIL-STD-883C, Method 3015; Exceeds 200 V Usi...

SN74ALVC16245 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN74ALVC16245
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 EPICTM (Enhanced-Performance Implanted CMOS) Submicron Process
 Member of the Texas Instruments WidebusTM Family
 ESD Protection Exceeds 2000 V Per MIL-STD-883C, Method 3015; Exceeds 200 V Using Machine Model (C = 200 pF, R = 0)
 Latch-Up Performance Exceeds 250 mA Per JEDEC Standard JESD-17
 Bus Hold on Data Inputs Eliminates the Need for External Pullup/Pulldown Resistors
 Package Options Include Plastic Shrink Small-Outline (DL) and Thin Shrink Small-Outline (DGG) Packages


Pinout

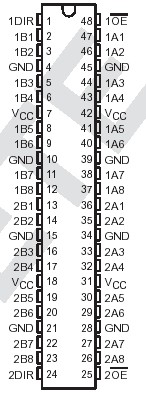

Connection Diagram


Specifications

Supply voltage range, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to 4.6 V
Input voltage range, VI: Except I/O ports (see Note 1) . . . . . . . . . . . . .. . . .   0.5 V to VCC + 4.6 V
                                       (I/O ports) (see Notes 1 and 2). . . . . . . . . . . . . . . .   0.5 V to VCC + 0.5 V
Output voltage range, VO (see Notes 1 and 2) . . . . . . . . . . . . . . . . . . . . .  . . .0.5 V to VCC + 0.5 V
Input clamp current, IIK (VI < 0). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . 50 mA
Output clamp current, IOK (VO < 0 or VO > VCC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±50 mA
Continuous output current, IO (VO = 0 to VCC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . .±50 mA
Continuous current through VCC or GND  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ... ±100mA
Maximum power package dissipation at TA = 55°C (in still air)(see Note 3):DGG package  . .  .0.85W
                                                                                                                     DL package . .  .   .1.2 W
Storage temperature range ,Tstg . . .  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . .65°C to 150°C


Description

The SN74ALVC16245 16-bit (dual-octal) noninverting bus transceiver is designed for 2.3-V to 3.6-V VCC operation; it is tested at 2.5-V, 2.7-V, and 3.3-V VCC.

The SN74ALVC16245 is designed for asynchronous communication between data buses. The control-function implementation minimizes external timing requirements.

This SN74ALVC16245 can be used as two 8-bit transceivers or one 16-bit transceiver. It allows data transmission from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the direction-control (DIR) input. The output-enable (OE) input can be used to disable the device so that the buses are effectively isolated.

Active bus-hold circuitry is provided to hold unused or floating data inputs at a valid logic level.The SN74ALVC16245 is available in TI's shrink small-outline (DL) and thin shrink small-outline (DGG) packages, which provide twice the I/O pin count and functionality of standard small-outline packages in the same printed-circuit-board area.

The SN74ALVC16245 is characterized for operation from 40°C to 85°C.
