Features:

EPICTM (Enhanced-Performance Implanted CMOS) Submicron Process
Member of the Texas Instruments WidebusTM Family
ESD Protection Exceeds 2000 V Per MIL-STD-883C, Method 3015; Exceeds 200 V Using Machine Model (C = 200 pF, R = 0)
Latch-Up Performance Exceeds 250 mA Per JEDEC Standard JESD-17
Bus Hold on Data Inputs Eliminates the Need for External Pullup/Pulldown Resistors
Package Options Include Plastic Shrink Small-Outline (DL) and Thin Shrink Small-Outline (DGG) Packages




Pinout

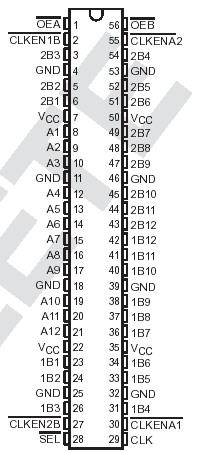

Connection Diagram




Specifications

Supply voltage range, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to4.6 V
Input voltage range, VI: Except I/O ports (see Note 1) . . . . . .. . . . . . .. . . . 0.5 V to VCC +0.5 V
I/O ports (see Notes 1 and 2). . . . . . . . .. . . . . . . . 0.5 V to VCC + 0.5 V
Output voltage range, VO (see Notes 1 and 2) . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to VCC + 0.5 V
Input clamp current, IIK (VI < 0). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . .50 mA
Output clamp current, IOK (VO < 0 or VO > VCC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±50 mA
Continuous output current, IO (VO = 0 to VCC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . .±50 mA
Continuous current through VCC or GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ... ±100mA
Maximum power package dissipation at TA = 55°C (in still air)(see Note 3):DGG package . .. . .1W
DL package . . . .1.4 W
Storage temperature range,Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . .65°C to 150°C




Description

The SN74ALVC16270 is designed as a 12-bit to 24-bit registered bus exchanger, which is intended for use in applications where data must be transferred from a narrow high-speed bus to a wide lower-frequency bus. SN74ALVC16270 is designed specifically for low-voltage (3.3V) Vcc operation.

SN74ALVC16270 has six features. (1)EPIC (enhanced-performance implanted CMOS) submicron process. (2)Member of the texas instruments widebusE family. (3)ESD protection exceeds 2000V per MIL-STD-883C, method 3015; exceeds 200V using machine model (C=200pF, R=0). (4)Latch-up performance exceeds 250mA per JEDEC standard JESD-17. (5)Bus hold on data inputs eliminates the need for external pullup/ pulldown resistors. (6)Package options include plastic shrink small-outline (DL) and thin shrink small-outline (DGG) packages. Those are all the main features.

Some absolute maximum ratings of SN74ALVC16270 have been concluded into several points as follow. (1)Its supply voltage range would be from -0.5V to 4.6V. (2)Its input voltage range would be from -0.5V to Vcc+0.5V. (3)Its output voltage range would be from -0.5V to Vcc+0.5V. (4)Its input clamp current would be -50mA. (5)Its output clamp current would be +/-50mA. (6)Its continuous output current would be +/-50mA. (7)Its continuous current through Vcc or GND would be +/-100mA. (8)Its maximum power dissipation at Ta=55°C would be 1W for DGG package and would be 1.4W for DL package. (9)Its storage temperature range would be from -65°C to 150°C. SN74ALVC16270 should be noted that stresses above those listed in absolute maximum ratings may cause permanent damage to device.

Also some electrical characteristics of SN74ALVC16270 are concluded as follow. (1)Its Voh would be min 2V. (2)Its Vol would be max 0.2V. (3)Its Ii would be max +/-5uA. (4)Its Ii(hold) would be min 45uA at Vi=0.7V. (5)Its Icc would be max 40uA. (6)Its Ci would be typ 3.5pF. (7)Its Cio would be typ 9pF. And so on. If you have any question or suggestion or want to know more information please contact us for details. Thank you!
