Features:

*Member of the Texas Instruments Widebus™ Family
*EPIC™ (Enhanced-Performance Implanted CMOS) Submicron Process
*Outputs Have Equivalent 26-Ω Series Resistors, So No External Resistors AreRequired
*ESD Protection Exceeds 2000 V Per
  MIL-STD-883, Method 3015; Exceeds 200 V
  Using Machine Model (C = 200 pF, R = 0)

*Latch-Up Performance Exceeds 250 mA Per JESD 17
*Package Options Include Plastic Shrink
  Small-Outline (DL), Thin Shrink
  Small-Outline (DGG), and Thin Very
  Small-Outline (DGV) Packages



Pinout

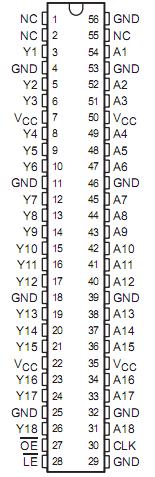

  Connection Diagram


Specifications

Supply voltage range,   VCC. . . . . . . . . .. . . . . .. . . . . . . . . . . . . -0.5 V to 4.6V
Input voltage range, VI(see Note 1). . . . . . . . . .. . . ...  . -0.5 V to VCC + 4.6 V
Onput voltage range, VO(see Note 1 and 2). . . . . . . ... . -0.5 V to VCC + 0.5 V
Input clamp current, IIK (VI < 0  )  .. . . . . . . . . .. . . . . .. . . . . .. . . . . . . .-50mA
Onput clamp current, IOK (VO < 0 ). . .  .. . . . . .. . . . . .. . . . . .. . . . .  . . . -50mA
Continuous output current,IO .. . . . . .. . . . . .. . . . . .. . . . . .. . .  . ... . . ±50mA
Continuous current through VCC or GND .. . . . . . . . . . . . .. . . . . .. . . .±100mA
Package thermal impedance, JA (see Note 3): DGG package  . . . .. . 81°C/W
                                                                          DGV package. . . . . .. 86°C/W
                                                                          DL package  . . . . . ...74°C/W
Storage temperature range, Tstg  . . . . .  . . . . .  . . . . .  . . . 65°C to 150°C



Description

      This SN74ALVC162834 18-bit universal bus driver is designed for 1.65-V to 3.6-V VCC operation.

      Data flow from A to Y is controlled by the output-enable (OE) input. The device operates in the transparent mode when the latch-enable (LE) input is low. The A data of SN74ALVC162834 is latched if the clock (CLK) input is held at a high or low logic level. If LE is high, the A data is stored in the latch/flip-flop on the low-to-high transition of CLK. When OE is high, the outputs are in the high-impedance state. The outputs, which are designed to sink up to 12 mA, include equivalent 26-Ω resistors to reduce overshoot and undershoot.

      The SN74ALVC162834 is characterized for operation from 40°C to 85°C.
