SN74ALVC16334

Supply voltage range,   V_CC. . . . . . . . . .. . . . . .. . . . . .. . . . . . . . -0.5 V to 4.6V
Input voltage range, V_I(see Note 1). . . . . . . . . .. . . . ..  . -0.5 V to V_CC + 4.6 V
Onput voltage range, V_O(see Note 1 and 2). . . . . . . .... . -0.5 V to V_CC + 0.5 V
Input clamp current, I_IK (V_I < 0  )  .. . . . . . . . . .. . . . . .. . . . . .. . . . .. . . .-50mA
Input clamp current, I_OK (V_O < 0 ). . .  .. . . . . .. . . . . .. . . . . .. . . . . . . . . -50mA
Continuous output current,I_O .. . . . . .. . . . . .. . . . . .. . . . . .. . .  . .. . . . ±50mA
Continuous current through V_CC or GND .. . . . . . . . . . . . .. . . . . .. . .  .±100mA
Package thermal impedance, _JA (see Note 3): DGG package  . . . . . . 89°C/W
                                                                          DGV package. . . . . . .  93°C/W
                                                                          DL package  .. . . . . .. .94°C/W
Storage temperature range, T_stg  . . . . .  . . . . .  . . . . .  . . .  65°C to 150°C

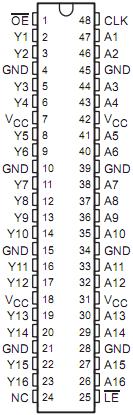

      This SN74ALVC16334 16-bit universal bus driver is designed for 1.65-V to 3.6-V VCC operation.

      Data flow from A to Y is controlled by the output-enable (OE) input. The device operates in the transparent mode when the latch-enable (LE)input is low. When LE is high, the A data is latched if the clock (CLK) input is held at a high or low logic level. If LE is high, the A data is stored in the latch/flip-flop on the low-to-high transition of CLK. When OE is high, the outputs are in the high-impedance state.To ensure the high-impedance state of SN74ALVC16334 during power up or power down, OE should be tied to V_CC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.

      The SN74ALVC16334 is characterized for operation from 40°C to 85°C.
