SN74ALVC16409

Features: EPICTM (Enhanced-Performance Implanted CMOS) Submicron ProcessMember of the Texas Instruments Widebus+TM FamilyUBETM (Universal Bus Exchanger) Allows Synchronous Data ExchangeDesigned to Facilitate Incident-Wave Switching for Line Impedances of 50 W or GreaterTypical VOLP (Output Ground ...

product image

SN74ALVC16409 Picture
See larger image
SeekIC No. : 004498232 Detail

SN74ALVC16409: Features: EPICTM (Enhanced-Performance Implanted CMOS) Submicron ProcessMember of the Texas Instruments Widebus+TM FamilyUBETM (Universal Bus Exchanger) Allows Synchronous Data ExchangeDesigned to F...

SN74ALVC16409 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN74ALVC16409
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 EPICTM (Enhanced-Performance Implanted CMOS) Submicron Process
 Member of the Texas Instruments Widebus+TM Family
 UBETM (Universal Bus Exchanger) Allows Synchronous Data Exchange
 Designed to Facilitate Incident-Wave Switching for Line Impedances of 50 W or Greater
 Typical VOLP (Output Ground Bounce) < 0.8 V at VCC = 3.3 V, TA = 25°C
 Typical VOHV (Output VOH Undershoot) > 2 V at VCC = 3.3 V, TA = 25°C
 ESD Protection Exceeds 2000 V Per MIL-STD-883C, Method 3015; Exceeds 200 V Using Machine Model (C = 200 pF, R = 0)
 Bus Hold on Data Inputs Eliminates the Need for External Pullup/Pulldown Resistors
 Latch-Up Performance Exceeds 250 mA Per JEDEC Standard JESD-17
 Package Options Include Plastic 300-mil Shrink Small-Outline (DL) and Thin Shrink Small-Outline (DGG) Packages


Pinout

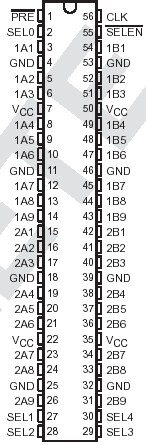

Connection Diagram


Specifications

Supply voltage range, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to 4.6 V
Input voltage range, VI: (except I/O ports) (see Note 1) . . . . . . . . . . . .. . . .  . . . . ..0.5 V  to 4.6 V
                                      (I/O ports) (see Notes 1 and 2). . . . . . . . . . . . . . . .   0.5 V to VCC + 0.5 V
Output voltage range, VO (see Notes 1 and 2) . . . . . . . . . . . . . . . . . . . . .  . . .0.5 V to VCC + 0.5 V
Output clamp current, IOK (VO < 0 or VO > VCC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±50 mA
Continuous output current, IO (VO = 0 to VCC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . .±50 mA
Continuous current through VCC or GND  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ... ±100mA
Maximum power package dissipation at TA = 55°C (in still air)(see Note 3):DGG package  . .  . . 1 W
                                                                                                                     DL package . .. . . . 1.4 W
Storage temperature range ,Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . .65°C to 150°C


Description

The SN74ALVC16409 allows synchronous data exchange between four different buses.

Data flow is controlled by the select (SEL0SEL4) inputs. A data-flow state is stored on the rising edge of the clock (CLK) input if the select-enable (SELEN) input is low. Once a data-flow state has been established, data is stored in the flip-flop on the rising edge of CLK if SELEN is high. The data-flow control logic is designed to allow glitch-free data transmission.SN74ALVC16409 Active bus-hold circuitry is provided to hold unused or floating data inputs at a valid logic level.

The SN74ALVC16409 is available in TI's shrink small-outline (DL) and thin shrink small-outline (DGG) packages, which provide twice the I/O pin count and functionality of standard small-outline packages in the same printed-circuit-board area.

The SN74ALVC16409 is characterized for operation from 40°C to 85°C.
