SN74ALVC16834

Features: *Member of the Texas Instruments Widebus™ Family*EPIC™ (Enhanced-Performance Implanted CMOS) Submicron Process*Latch-Up Performance Exceeds 250 mA Per JESD 17*ESD Protection Exceeds 2000 V Per MIL-STD-883, Method 3015; Exceeds 200 V Using Machine Model (C = 200 pF, R = 0)*Pac...

product image

SN74ALVC16834 Picture
See larger image
SeekIC No. : 004498238 Detail

SN74ALVC16834: Features: *Member of the Texas Instruments Widebus™ Family*EPIC™ (Enhanced-Performance Implanted CMOS) Submicron Process*Latch-Up Performance Exceeds 250 mA Per JESD 17*ESD Protection Ex...

SN74ALVC16834 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN74ALVC16834
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

*Member of the Texas Instruments Widebus™ Family
*EPIC™ (Enhanced-Performance Implanted CMOS) Submicron Process
*Latch-Up Performance Exceeds 250 mA Per JESD 17
*ESD Protection Exceeds 2000 V Per
  MIL-STD-883, Method 3015; Exceeds 200 V
  Using Machine Model (C = 200 pF, R = 0)
*Package Options Include Plastic Shrink
  Small-Outline (DL), Thin Shrink
  Small-Outline (DGG), and Thin Very
  Small-Outline (DGV) Packages


Pinout

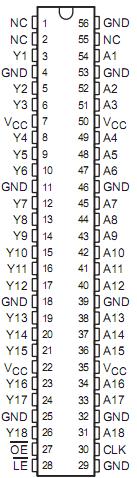

Connection Diagram


Specifications

Supply voltage range,   VCC. . . . . . . . . .. . . . . .. . . . . . . . . . . . . -0.5 V to 4.6V
Input voltage range, VI(see Note 1). . . . . . . . . .. . . ...  . -0.5 V to VCC + 4.6 V
Onput voltage range, VO(see Note 1 and 2). . . . . . . ... . -0.5 V to VCC + 0.5 V
Input clamp current, IIK (VI < 0  )  .. . . . . . . . . .. . . . . .. . . . . .. . . . . . . .-50mA
Input clamp current, IOK (VO < 0 ). . .  .. . . . . .. . . . . .. . . . . .. . . . .  . . . -50mA
Continuous output current,IO .. . . . . .. . . . . .. . . . . .. . . . . .. . .  . ... . . ±50mA
Continuous current through VCC or GND .. . . . . . . . . . . . .. . . . . .. . . .±100mA
Package thermal impedance, JA (see Note 3): DGG package  . . . .. . 81°C/W
                                                                          DGV package. . . . . .. 86°C/W
                                                                          DL package  . . . . . ...74°C/W
Storage temperature range, Tstg  . . . . .  . . . . .  . . . . .  . . . 65°C to 150°C


Description

      This SN74ALVC16834 18-bit universal bus driver is designed for 1.65-V to 3.6-V VCC operation.

      Data flow from A to Y is controlled by the output-enable (OE) input. The device operates in the transparent mode when the latch-enable (LE) input is low. The A data is latched if the clock (CLK) input is held at a high or low logic level. If LE is high, the A data is stored in the latch/flip-flop on the low-to-high transition of CLK. When OE is high, the outputs are in the high-impedance state. To ensure the high-impedance state of SN74ALVC16834 during power up or power down, OE should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.

      The SN74ALVC16834 is characterized for operation from 40°C to 85°C.
