SN74ALVC7814

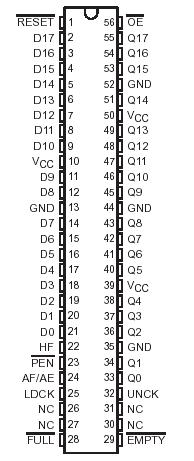

A FIFO memory is a storage device that allows data to be written into and read from its array at independent data rates. The SN74ALVC7814 is an 18-bit FIFO with high speed and fast access times. Data is processed at rates up to 40 MHz with access times of 18 ns in a bit-parallel format.These memories are designed for 3-V to 3.6-V V_CC operation.

Data of SN74ALVC7814 is written into memory on a low-to-high transition of the load clock (LDCK) and is read out on a low-to-high transition of the unload clock (UNCK). The memory is full when the number of words clocked in exceeds the number of words clocked out by 64. When the memory is full, LDCK has no effect on the data residing in memory. When the memory is empty, UNCK has no effect.

Status of the SN74ALVC7814 FIFO memory is monitored by the full (FULL), empty (EMPTY), half-full (HF), and almostfull/ almost-empty (AF/AE) flags. The FULL output is low when the memory is full and high when the memory is not full. The EMPTY output is low when the memory is empty and high when it is not empty. The HF output is high whenever the FIFO contains 32 or more words and low when it contains 31 or fewer words. The AF/AE status flag is a programmable flag. The first one or two low-to-high transitions of LDCK after reset are used to program the almost-empty offset value (X) and the almost-full offset value (Y) if program enable (PEN) is low. The AF/AE flag is high when the FIFO contains X or fewer words or (64 Y) or more words. The AF/AE flag is low when the FIFO contains between (X + 1) and (63 Y) words.
