Features: *Member of the Texas Instruments Widebus™ Family
*EPIC™ (Enhanced-Performance Implanted CMOS) Submicron Process
*Output Ports Have Equivalent 26-Ω Series Resistors, So No External Resistors Are Required
*ESD Protection Exceeds 2000 V Per MIL-STD-883, Method 3015; Exceeds 200 V
Using Machine Model (C = 200 pF, R = 0)
*Latch-Up Performance Exceeds 250 mA Per JESD 17
*Bus Hold on Data Inputs Eliminates the Need for External Pullup/Pulldown Resistors
*Package Options Include Plastic 300-mil
Shrink Small-Outline (DL) and Thin Shrink

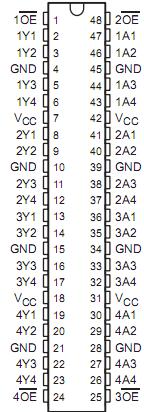

Small-Outline (DGG) PackagesPinout
SpecificationsSupply voltage range, VCC. . . . . . . . . .. . . . . .. . . . . . . . . . . . . -0.5 V to 4.6V
Input voltage range, VI(see Note 1). . . . . . . . . .. . . ... . .. . . . . -0.5 V to 4.6 V
Onput voltage range, VO(see Note 1 and 2). . . . . . . ... . -0.5 V to VCC + 0.5 V
Input clamp current, IIK (VI < 0 ) .. . . . . . . . . .. . . . . .. . . . . .. . . . . . . .-50mA
Onput clamp current, IOK (VO < 0 ). . . .. . . . . .. . . . . .. . . . . .. . . . . . . . -50mA
Continuous output current,IO .. . . . . .. . . . . .. . . . . .. . . . . .. . . . ... . . ±50mA
Continuous current through VCC or GND .. . . . . . . . . . . . .. . . . . .. . . .±100mA
Package thermal impedance, JA (see Note 3): DGG package . . . .. . 89°C/W
DL package . . . . . ...94°C/W
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . 65°C to 150°C Description This SN74ALVCH162244 16-bit buffer/driver is designed for 1.65-V to 3.6-V VCC operation.
The SN74ALVCH162244 is designed specifically to improve the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters.
The SN74ALVCH162244 device can be used as four 4-bit buffers, two 8-bit buffers, or one 16-bit buffer. It provides true outputs and symmetrical active-low output enable (OE ) inputs. The outputs, which are designed to sink up to 12 mA, include equivalent 26-Ω resistors to reduce overshoot and undershoot.
To ensure the high-impedance state of SN74ALVCH162244 during power up or power down, OE should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.Active bus-hold circuitry is provided to hold unused or floating data inputs at a valid logic level.
The SN74ALVCH162244 is characterized for operation from 40°C to 85°C.
SN74ALVCH162244 Data Sheet
